Optical Post Holder, Translating, 76.2-92.5 mm, 12.7 mm Posts, M6
Optical Post Holder, Translating, 76.2-92.5 mm, 12.7 mm Posts, M6
Model: M-VPT-3
Product Series Overview

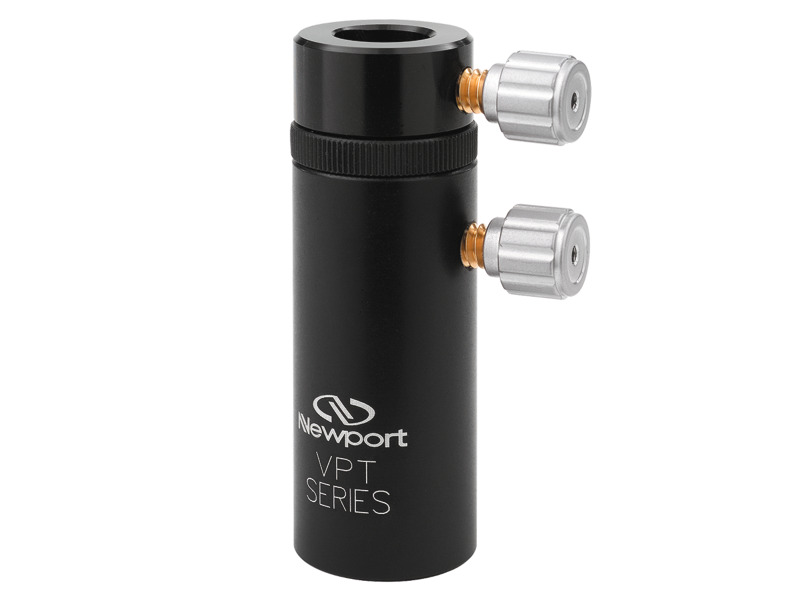

Translating Optical Post HoldersThe M-VPT-3 Translating Optical Post Holder provides precise 76.2 to 92.5 mm vertical adjustment for 12.7 mm diameter optical post mounted components. Posts can be coarsely set, precisely adjusted for height, and then locked for high stability. A threaded M6 hole in the base can be used with the M-PS-A Pedestal Post Adapter.
Resources & Downloads
2D Product Drawings
VPT-S(180.9 kB, PDF)
Other
M-VPT-3 RoHS Certificate(0, PDF)
