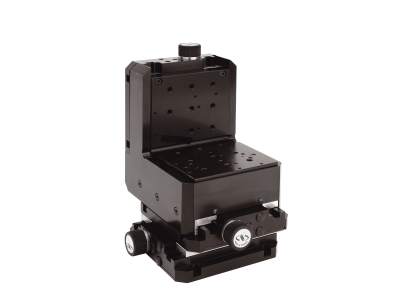

XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tach, Metric, Left-handed

VP Compact Aluminum DC Motor Linear Stages

The M-VP-25XA-XYZL Metric Precision Compact Linear Stage provides high-precision positioning performance in an ultra-compact form factor. A low friction ball screw drive provides robust, reliable performance with excellent thrust and minimal heat induced position drift. Combined with excellent minimum incremental motion of 0.1μm and travel of 25mm, the M-VP-25XA-XYZL is ideal for applications requiring fine manipulation of small parts such as alignment of optical fibers. Featuring a manual adjustment knob,M-VP-25XA-XYZL stages are versatile enough to handle automated and non-automated tasks alike. Typical applications include fiber alignment, micro-assembly, and micromachining.

Backlash-free Ballscrew

The VP includes a preloaded, backlash-free ball screw, which provides smooth motion and outstanding bi-directional repeatability.

DC Motor for Smooth, High Speed Motion

DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. Precise closed-loop servo positioning and speed control on these VP stages is achieved with a built-in linear encoder and included tachometer. A manual adjustment knob also adds to the utility of these stages.

End-of-Run Limit Switches

The stage contains end-of-run limit switches on both ends to prevent damage to the stage from over-travel.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

Error Mapping Services

For critical positioning applications, Newport offers error mapping upon request for VP-25XL stages driven by our XPS advanced motion controller. We will measure, implement, and verify the results of this error map that will individually optimize each stage's position accuracy. In addition, multi-axis error mapping is also available. Measurements are made at 20.0 ±0.2 °C. A certificate of calibration will be provided with your stage. Actual data may also be provided upon request.

Specifications

Technical Specs

Motorized Axes
XYZ
Orientation
Left-Handed
Travel Range
25 mm
Maximum Speed
25 mm/s
Minimum Incremental Motion
100 nm
Centered Load Capacity
35 N
Axial Load Capacity (+Cx)
40 N
Inverse Axial Load Capacity (-Cx)
-40 N
Accuracy, Typical
±0.4 µm
Accuracy, Guaranteed
±1.0 µm
Bi-directional Repeatability, Typical
±0.06 µm
Bi-directional Repeatability, Guaranteed
±0.10 µm
Pitch, Typical
±22 µrad
Pitch, Guaranteed
±50 µrad
Compliance in Pitch
20 µrad/Nm
Yaw, Typical
±17 µrad
Yaw, Guaranteed
±50 µrad
Compliance in Yaw
30 µrad/Nm

Compliance in Roll
20 µrad/Nm
Bearings
Recirculating ball bearings
Drive Type
DC Servo with Tachometer
Drive Mechanism
Backlash-free ball screw
Drive Screw Pitch
1 mm
Feedback
Linear Encoder
Limit Switches
Optical
Origin
Optical, centered
Origin Repeatability
±0.1 µm
Cable Length
1.5 m
Connector Type
DB25M (3)
Thread Type
M3, M4, and M6
Weight
5 kg
MTBF
20,000 h (25% load, 30% duty cycle)
Maximum Power Consumption
30 W
Compliance
RoHS 3, CE

Motorized Axes
XYZ
Orientation
Left-Handed
Travel Range
25 mm
Maximum Speed
25 mm/s
Minimum Incremental Motion
100 nm
Centered Load Capacity
35 N
Axial Load Capacity (+Cx)
40 N
Inverse Axial Load Capacity (-Cx)
-40 N
Accuracy, Typical
±0.4 µm
Accuracy, Guaranteed
±1.0 µm
Bi-directional Repeatability, Typical
±0.06 µm
Bi-directional Repeatability, Guaranteed
±0.10 µm
Pitch, Typical
±22 µrad
Pitch, Guaranteed
±50 µrad
Compliance in Pitch
20 µrad/Nm
Yaw, Typical
±17 µrad
Yaw, Guaranteed
±50 µrad
Compliance in Yaw
30 µrad/Nm

Compliance in Roll
20 µrad/Nm
Bearings
Recirculating ball bearings
Drive Type
DC Servo with Tachometer
Drive Mechanism
Backlash-free ball screw
Drive Screw Pitch
1 mm
Feedback
Linear Encoder
Limit Switches
Optical
Origin
Optical, centered
Origin Repeatability
±0.1 µm
Cable Length
1.5 m
Connector Type
DB25M (3)
Thread Type
M3, M4, and M6
Weight
5 kg
MTBF
20,000 h (25% load, 30% duty cycle)
Maximum Power Consumption
30 W
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

VP-25XA-XYZL(156.9 kB, PDF)
VP-25XA-S(104 kB, PDF)
