Optical Rail, Miniature, 75 mm, 19.1 mm Width, M4 Thread and M6 CLR
Optical Rail, Miniature, 75 mm, 19.1 mm Width, M4 Thread and M6 CLR
Model: M-MRL-3
Product Series Overview

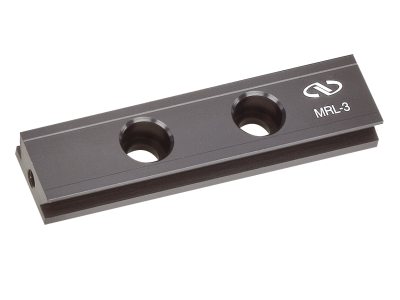

19 mm Miniature Optical Rails & CarriersThe M-MRL-3 Mini Optical Rail provides smooth carrier translation and wobble free clamp down over a 75 mm length. M6 clearance holes with M4 thread are provided. Mini Optical Rails and Carrier components can be assembled into compact, low profile systems that provides a modular in-line foundation and three-dimensional structures for a variety of optical assemblies. Their precision dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail using MC Series rail carriers.
Resources & Downloads
2D Product Drawings
MRL-3ATR-25perc-S(78.1 kB, PDF)
Other
M-MRL-3 RoHS Certificate(278.4 kB, PDF) M-MRL-3_RoHS2021.pdf(682.6 kB, PDF)
