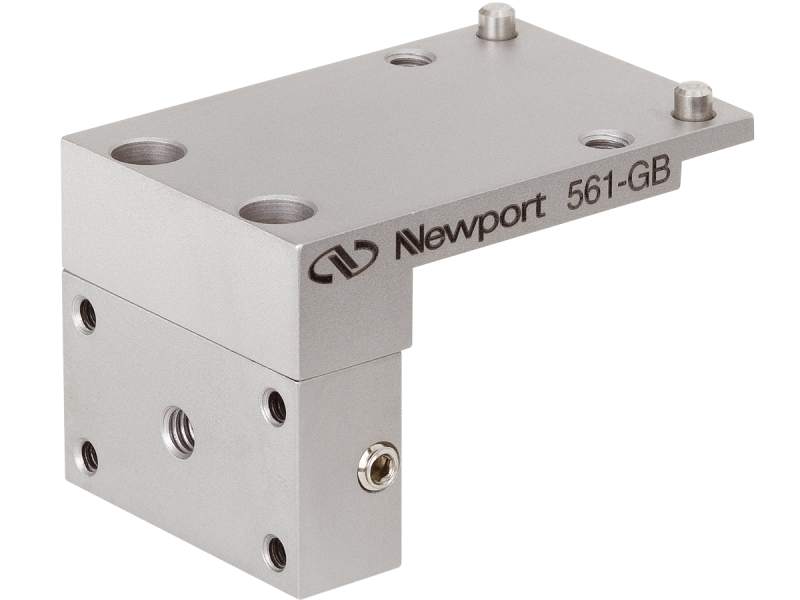

Mounting Bracket, Goniometer, Metric

The 561-GON Goniometer provides micrometer controlled rotation (θ_X) about the axis of the fiber, suitable for precision alignment of polarization angles for polarization preserving fibers or fiber arrays. The goniometer attaches to 561 and 562 ULTRAlign Linear Alignment Stages directly. A Goniometer Bracket is required when a tilt stage is stacked on the linear stage. An SM Series Micrometer is included to provide 6 arc sec sensitivity to the ±10° range of motion.
