Adaptor, Raises 561 Stage to 562 Height, 0.75 in.
Adaptor, Raises 561 Stage to 562 Height, 0.75 in.
Model: 561-ADPT
Product Series Overview

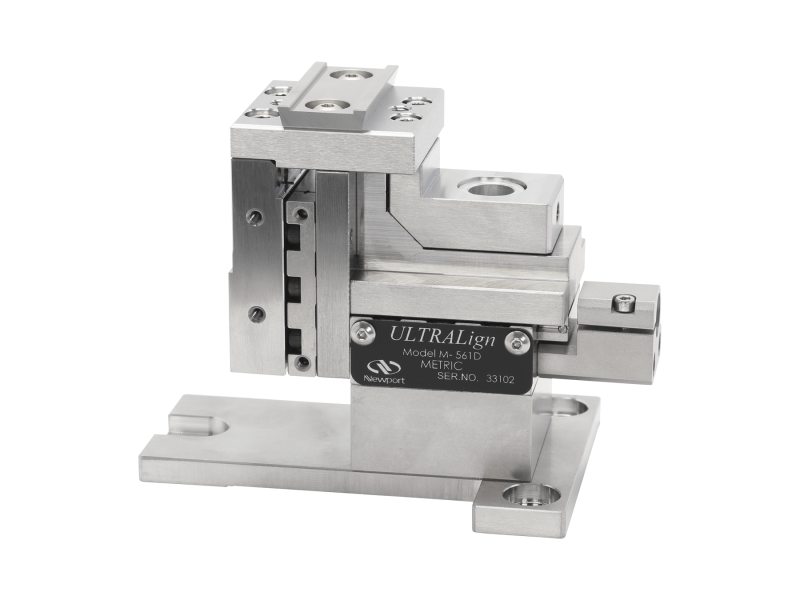

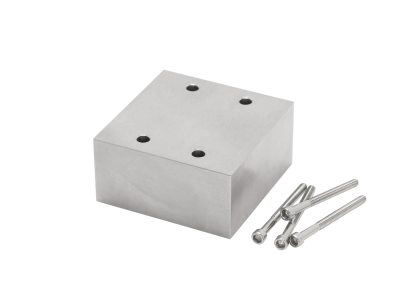

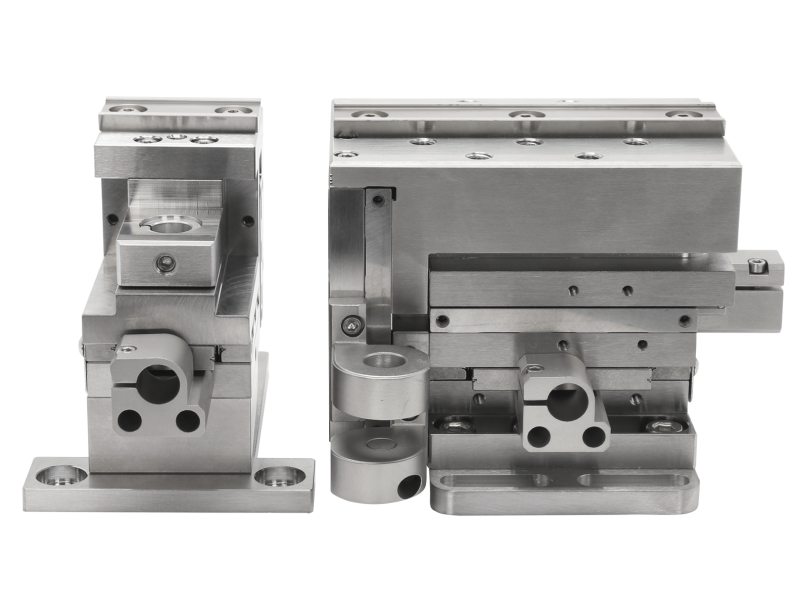

ULTRAlign Fiber Alignment AccessoriesThe 561-ADPT Height Adaptor raises 561D-XYZ and 561D-YZ stages to the height of a 562 stage. To attach the 561-ADPT, the bottom base plate of the 561D-XYZ or 561D-YZ must first be removed. Then, the 561-ADPT can be placed between the base plate and stages and secured with the four included screws.
Resources & Downloads
2D Product Drawings
561-ADPT-S(156.4 kB, PDF)
Other
561-ADPT_RoHS2021.pdf(681.6 kB, PDF)
