NIR Linear Polarizers, 25.0 mm Dia., 2.0 mm thick, 750-850 nm

Unmounted Laminated Polymer Film Linear Polarizers

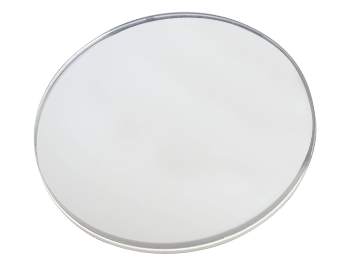

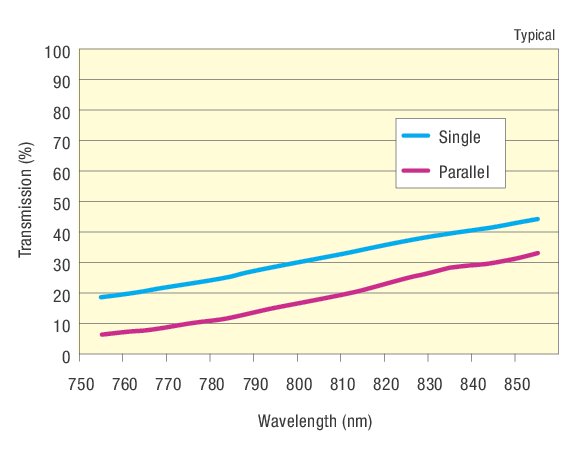

The LPNIR-1 NIR Linear Polarizer has a 25.0 mm diameter and is 2.0 mm thick. It is constructed by laminating a polymer polarizing film between two high-precision glass windows. The transmission on a single filter is about 30% from 750 to 850 nm.

Specifications

Technical Specs

Diameter
25.0 mm
Wavelength Range
750-850 nm
Material
B270
Polarizing Material
Dichroic Polymer
Extinction Ratio
1000:1
Damage Threshold
1 W/cm² CW, 0.2 J/cm² with 20 nsec pulses, visible, typical
Clear Aperture
≥90% of Central Diameter

Diameter Tolerance
+0.0/-0.2 mm
Thickness
2.0 mm
Thickness Tolerance
±0.2 mm
Unpolarized Transmission, Single
30% ± 3 %

Diameter
25.0 mm
Wavelength Range
750-850 nm
Material
B270
Polarizing Material
Dichroic Polymer
Extinction Ratio
1000:1
Damage Threshold
1 W/cm² CW, 0.2 J/cm² with 20 nsec pulses, visible, typical
Clear Aperture
≥90% of Central Diameter

Diameter Tolerance
+0.0/-0.2 mm
Thickness
2.0 mm
Thickness Tolerance
±0.2 mm
Unpolarized Transmission, Single
30% ± 3 %
