Spherical Ball Microlens, 2.0 mm, 1.10 mm FL, 0.10 mm WD, Uncoated
Spherical Ball Microlens, 2.0 mm, 1.10 mm FL, 0.10 mm WD, Uncoated
Model: LB2
In Stock
Product Series Overview

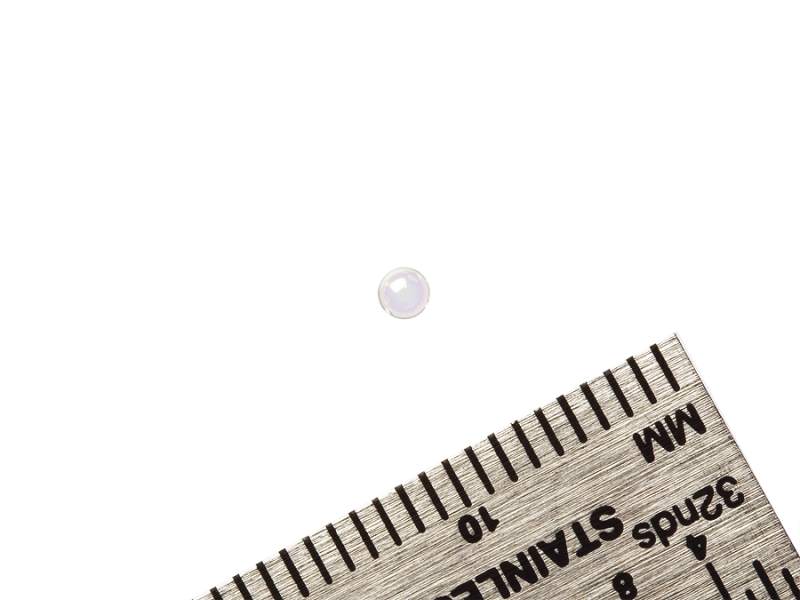

Spherical Ball Micro LensesThe LB2 Spherical Ball Micro Lens is an uncoated, 2.0 mm diameter, spherical ball lens with a 1.10 mm focal length, a 0.10 mm working distance, and a 1.6 mm clear aperture. Spherical ball lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Their compact size makes them useful in a variety of applications.
Specifications
- Lens ShapeSphere
- Diameter2.0 mm
- Lens MaterialGrade A LaSF N9
- Antireflection CoatingUncoated
- Lens TypeMicro Ball Lens
- Effective Focal Length (EFL)1.10 mm
- Wavelength Range600-1550 nm
- Working Distance0.10 mm
- Diameter Tolerance±0.001 mm
- f/CA0.69
- Clear Aperture1.6 mm
Resources & Downloads
Other
LB2 RoHS Certificate(263 kB, PDF) LB2_ROHS2-2021.pdf(278.4 kB, PDF)
