Faraday Optical Isolator, High Power, 5 mm Aperture, 1030 nm Center

High Power Faraday Optical Isolators

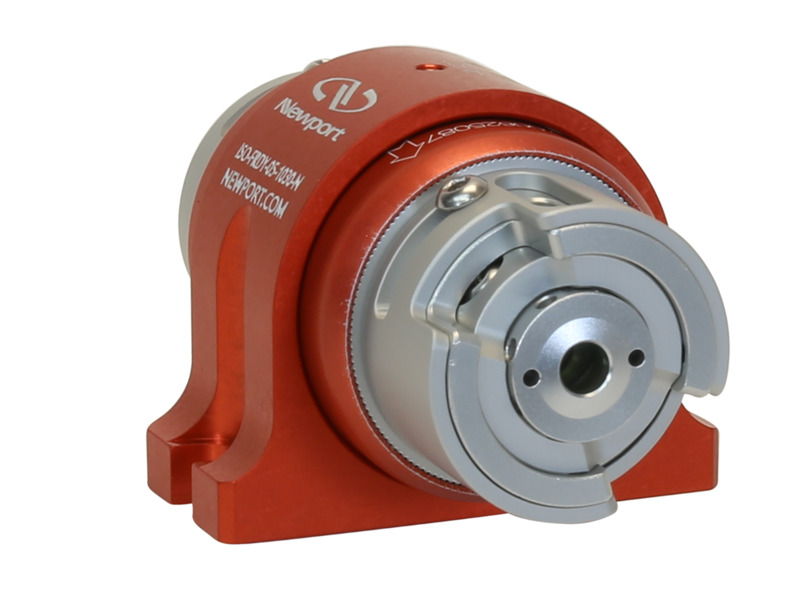

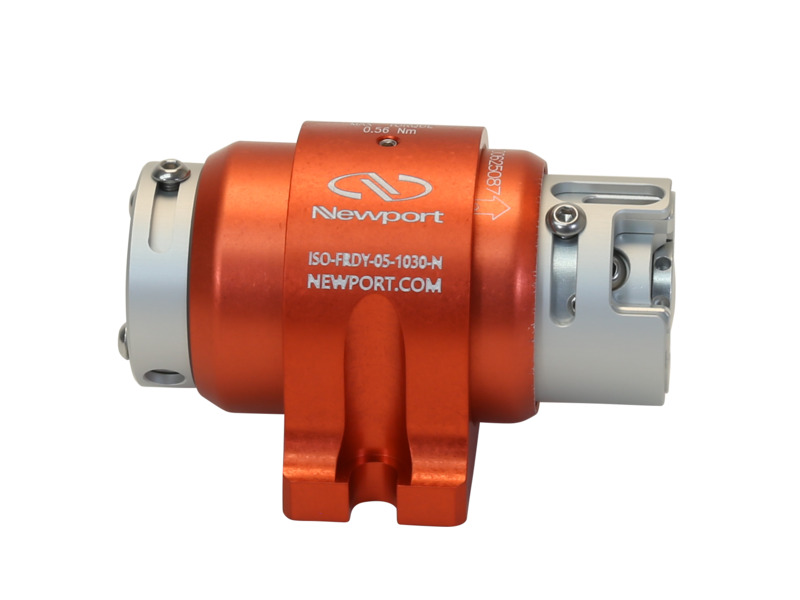

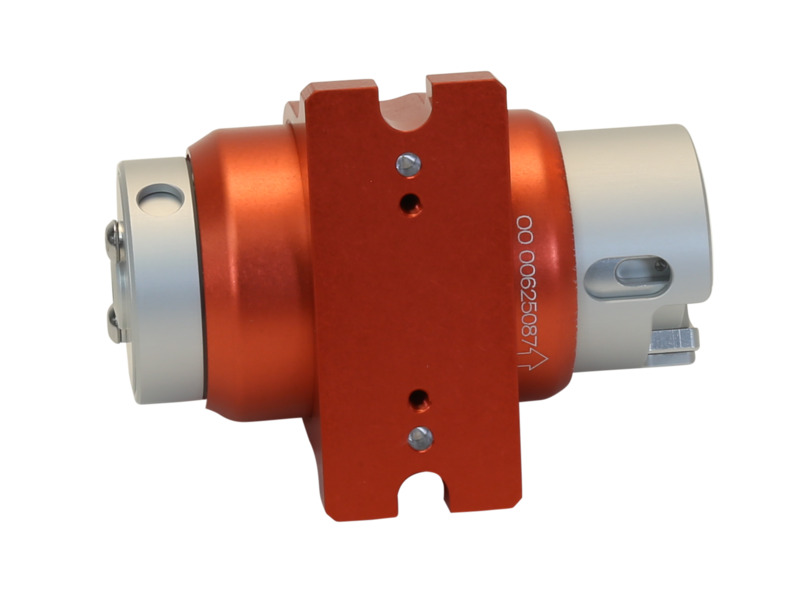

The ISO-FRDY-05-1030-N Faraday Optical Isolator is essentially a uni-directional light valve. It is used to protect a laser source from destabilizing feedback or actual damage from back-reflected light. This 1030 nm high power free space optical isolator is packaged in a compact cylindrically shaped magneto-optic device with a base plate for ease of mounting into an optical train. It has a 5 mm clear aperture and a 1010 to 1045 nm wavelength range. Horizontal input and 45 degree clockwise polarization output.

High Power Fused Silica PBS Cube

Our high power Faraday optical isolators use high damage threshold Fused Silica polarizing beamsplitter (PBS) cubes that are optically contacted rather than cemented. They also utilize double escape ports for added application flexibility.

High Efficiency Performance

The TGG crystal utilized in our Faraday isolators creates a large Verdet constant that ultimately describes the strength of the Faraday effect and provides effective isolation of back-reflected light. Additionally, these isolators have low absorption as a function of the TGG crystal and polarizers, resulting in reliable transmission of light in the forward direction.

Easy Placement into Optical Train

These isolators are packaged in a compact, cylindrically-shaped magneto-optic device with a base plate for easy mounting into an optical train.

Easy Placement into Optical Train

These isolators are packaged in a compact, cylindrically-shaped magneto-optic device with a base plate for easy mounting into an optical train.

Specifications

Technical Specs

Center Wavelength
1030 nm
Spectral Range
1010-1045 nm
Clear Aperture
5 mm
Isolation
33 dB
Transmission
>95%
Damage Threshold
1 MW/cm² CW
Pulse Damage Threshold
10 J/cm² @ 10ns; 1 J/cm² @ 8ps
Forward Power Handling
50 W

Material
Terbium Gallium Garnet
Polarization State
Horizontal
Polarizer Type
PBS Cube Polarizer
Operating Temperature
10-30°C
Storage Temperature
-40-70°C

Center Wavelength
1030 nm
Spectral Range
1010-1045 nm
Clear Aperture
5 mm
Isolation
33 dB
Transmission
>95%
Damage Threshold
1 MW/cm² CW
Pulse Damage Threshold
10 J/cm² @ 10ns; 1 J/cm² @ 8ps
Forward Power Handling
50 W

Material
Terbium Gallium Garnet
Polarization State
Horizontal
Polarizer Type
PBS Cube Polarizer
Operating Temperature
10-30°C
Storage Temperature
-40-70°C
