Faraday Optical Isolator, High Power, 8 mm Aperture, 1030 nm Center
Faraday Optical Isolator, High Power, 8 mm Aperture, 1030 nm Center
Model: ISO-FRDY-08-1030-N

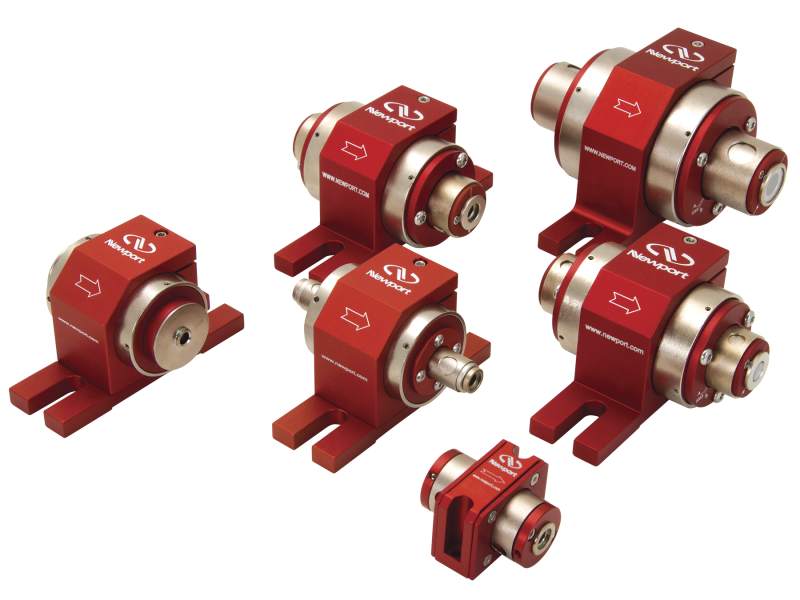

Product Series Overview

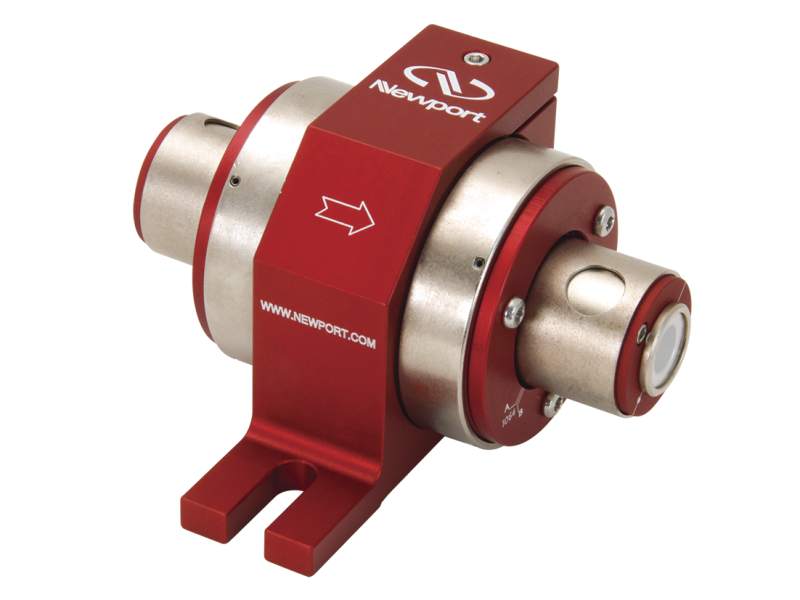

High Power Faraday Optical IsolatorsThe ISO-FRDY-08-1030-N Faraday Optical Isolator is essentially a uni-directional light valve. It is used to protect a laser source from destabilizing feedback or actual damage from back-reflected light. This 1030 nm high power free space optical isolator is packaged in a compact cylindrically shaped magneto-optic device with a base plate for ease of mounting into an optical train. It has a 8 mm clear aperture and a 1017 to 1043 nm wavelength range. Horizontal input and 45 degree clockwise polarization output.
High Power Fused Silica PBS Cube
Our high power Faraday optical isolators use high damage threshold Fused Silica polarizing beamsplitter (PBS) cubes that are optically contacted rather than cemented. They also utilize double escape ports for added application flexibility.
High Efficiency Performance
The TGG crystal utilized in our Faraday isolators creates a large Verdet constant that ultimately describes the strength of the Faraday effect and provides effective isolation of back-reflected light. Additionally, these isolators have low absorption as a function of the TGG crystal and polarizers, resulting in reliable transmission of light in the forward direction.
Easy Placement into Optical Train
These isolators are packaged in a compact, cylindrically-shaped magneto-optic device with a base plate for easy mounting into an optical train.
Easy Placement into Optical Train
These isolators are packaged in a compact, cylindrically-shaped magneto-optic device with a base plate for easy mounting into an optical train.
Specifications
- Center Wavelength1030 nm
- Spectral Range1017-1043 nm
- Clear Aperture8 mm
- Isolation30 dB
- Transmission>92%
- Damage Threshold1 MW/cm² CW
- Pulse Damage Threshold10 J/cm² @ 10ns; 1 J/cm² @ 8ps s
- Forward Power Handling50 W
- MaterialTerbium Gallium Garnet
- Polarization StateHorizontal
- Polarizer TypePBS Cube Polarizer
