Hexapod, High Accuracy, 125 mm Diameter Platform, 5 kg Load, M6
Hexapod, High Accuracy, 125 mm Diameter Platform, 5 kg Load, M6
Model: HXP50HA-MECA
Product Series Overview

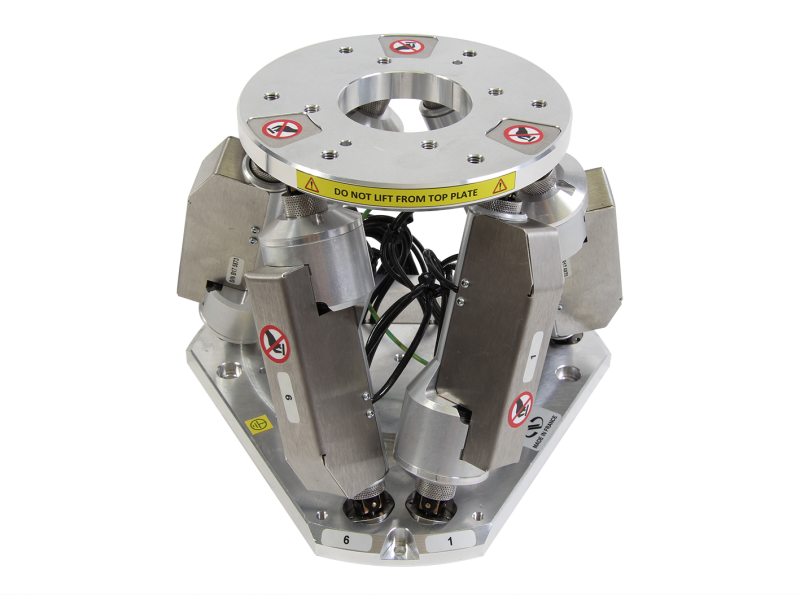

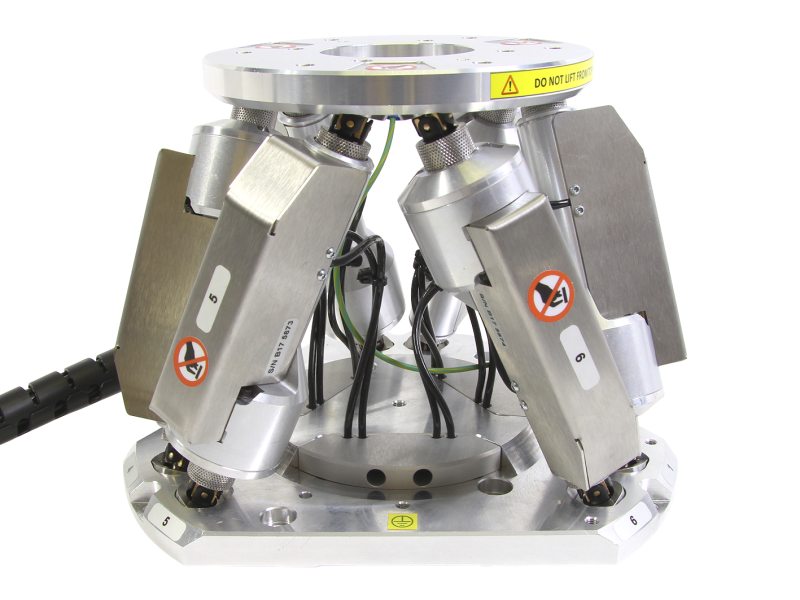

High Accuracy HexapodsThe HXP50HA-MECA High Accuracy 6-Axis Hexapod is a parallel kinematic motion device that provides six degrees of freedom: X, Y, Z, pitch, roll, and yaw. The HXP50HA has a 5 kg centered load capacity and is a cost-effective solution to complex motion applications that demand repeatability and accuracy in up to six independent axes. Hexapods, in general, are high priced and complex devices that are difficult to implement. The HXP50HA-MECA, on the contrary, is not only affordable but extremely easy to use and re-configure. Determine if the HXP50HA-MECA is the right hexapod for your application by using Newport's free HexaViz Simulation Software. The HXP50HA-MECA is compatible with the HXP50HA-ELEC -D controller.
Specifications
- TypeHigh Accuracy
- SizeØ200 x 151 mm
- Platform Diameter125 mm
- Centered Load Capacity50 N
- Travel Range X, Y, Z±17, ±15, ±7 mm
- Travel Range ΘX, ΘY, ΘZ±9, ±8.5, ±18 °
- Minimum Incremental Motion X, Y, Z0.10, 0.10, 0.05 µm
- Minimum Incremental Motion ΘX, ΘY, ΘZ0.05, 0.05, 0.10 mdeg
- Uni-directional Repeatability X, Y, Z - Typical±0.10, ±0.10, ±0.05 µm
- Uni-directional Repeatability X, Y, Z - Guaranteed±0.15, ±0.15, ±0.075 µm
- Uni-directional Repeatability ΘX, ΘY, ΘZ - Typical±0.05, ±0.05, ±0.10 mdeg
- Maximum Speed X, Y, Z14, 12, 5 mm/s
- Maximum Speed ΘX, ΘY, ΘZ6, 6, 15 °/s
- Accuracy XYZ, Guaranteed±5.0, ±5.0, ±2.5 µm
- Yaw X, Y, Z - Guaranteed±50, ±50, ±25 µrad
- Pitch X, Y, Z - Guaranteed±50, ±50, ±25 µrad
- Rigidity X, Y, Z2, 2, 25 N/µm
- Bi-directional Repeatability (X,Y,Z), Typical±0.60, ±0.60 , ±0.30 µm
- Bi-directional Repeatability (ΘX, ΘY, ΘZ), Typical±0.30, ±0.30, ±0.60 mdeg
- Bi-directional Repeatability X, Y, Z - Guaranteed±1.50 , ±1.50, ±1.25 µm

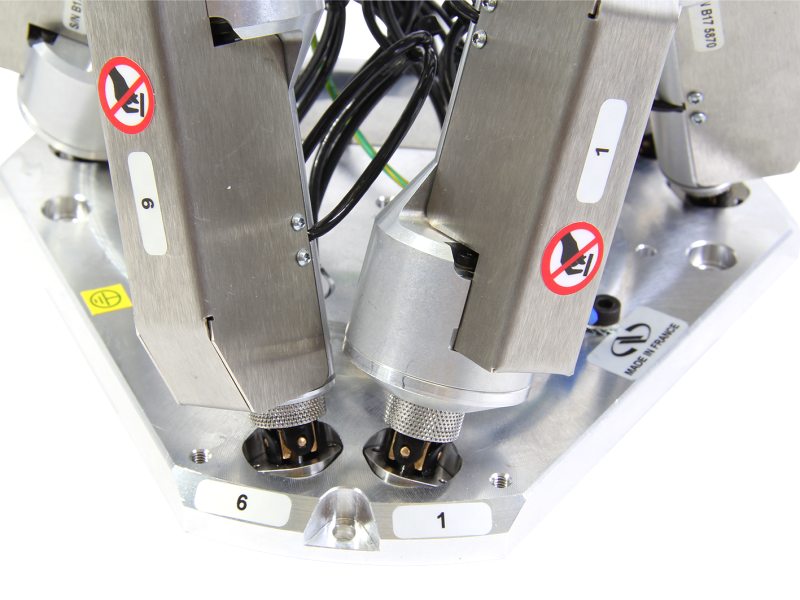

- ConnectorsDB25 Male (6) and DB15 Male (6)
- Cable Length3 m
- MotorDC Servo
- OriginOptical, close to lower limit
- Origin RepeatabilityX,Y,Z: ±5.0, ±5.0, ±2.5 µm
U,V,W: ±2.5, ±2.5, ±5.0 mdeg - Number of Axis6
- Weight2.2 kg
- Thread TypeM6
- MTBF5,000 h (25% load, 10% duty cycle)
- ComplianceRoHS 3, CE
