High Load Hexapod, 450 kg Centered Load Capacity, M6
High Load Hexapod, 450 kg Centered Load Capacity, M6
Model: HXP1000-MECA
11 Weeks
Product Series Overview

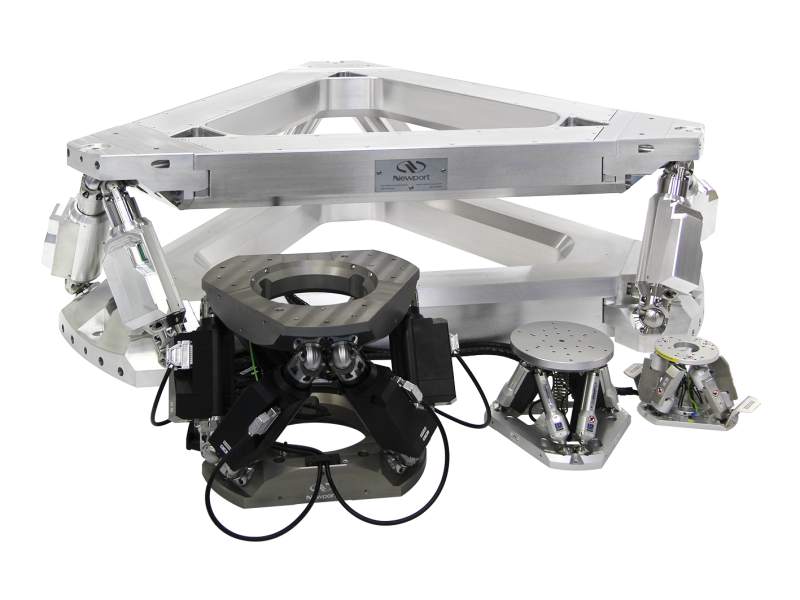

High Load HexapodsThe HXP1000-MECA High Load 6-Axis Hexapod is a parallel kinematic motion device that provides six degrees of freedom: X, Y, Z, pitch, roll, and yaw. The HXP1000 is an effective solution to complex motion applications that demand a high load capacity of up to 450 kg centered loads. It also features long travel ranges, fast speeds, high stiffness and stability as well as very easy to use and flexible coordinate systems or pivot points. Determine if the HXP1000-MECA is the right hexapod for your application by using Newport's free HexaViz Simulation Software. Order with HXP1000-ELEC-D.
Specifications
- TypeHigh Load Capacity
- SizeØ550 x 395 mm

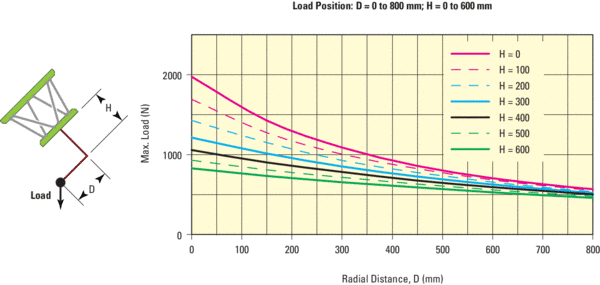

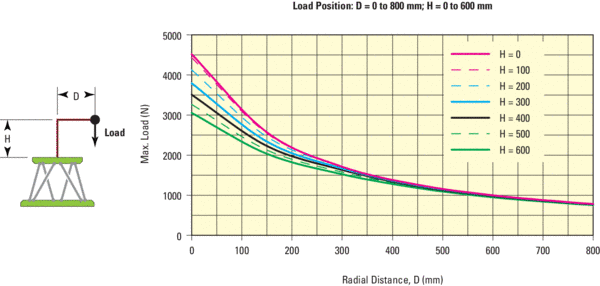

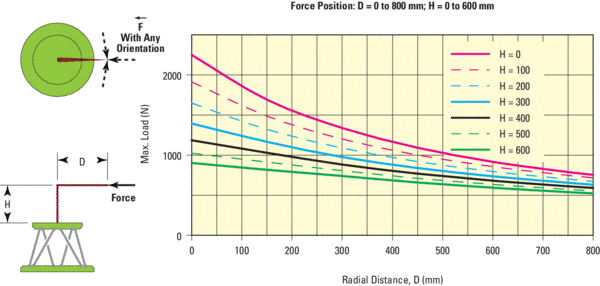

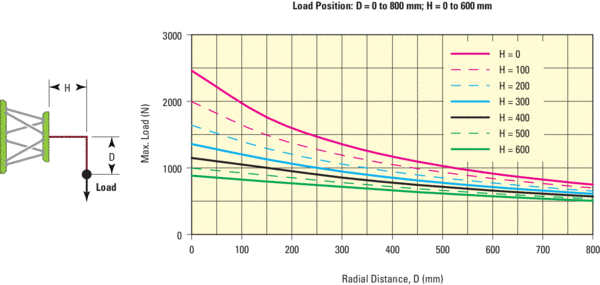

- Centered Load Capacity4500 N
- Travel Range X, Y, Z-62/+93, ±69, ±39.5 mm
- Travel Range ΘX, ΘY, ΘZ±11, ±10, ±19.5 °
- Minimum Incremental Motion X, Y, Z0.30, 0.30, 0.16 µm
- Minimum Incremental Motion ΘX, ΘY, ΘZ0.06, 0.06, 0.10 mdeg
- Uni-directional Repeatability X, Y, Z - Typical±0.15, ±0.15, ±0.08 µm
- Uni-directional Repeatability ΘX, ΘY, ΘZ - Typical±0.03, ±0.03, ±0.05 mdeg
- Maximum Speed X, Y, Z9, 9, 4 mm/s
- Maximum Speed ΘX, ΘY, ΘZ1.4, 1.4, 2.8 °/s
- Rigidity X, Y, Z10,10,100 N/µm
- ConnectorsDB25 - Male (6)
- Cable Length3 m
- MotorDC Servo
- OriginOptical, close to lower limit
- Origin RepeatabilityX,Y,Z: ±0.2, ±0.2, ±0.1 µm
U,V,W: ±0.05, ±0.05, ±0.1 mdeg - Encoder Resolution0.166666 µm
- Number of Axis6
- Weight60 kg
- Thread TypeM6
- MTBF5,000 h (25% load, 30% duty cycle)
- ComplianceRoHS 3, CE
Resources & Downloads
3D Product Models
Application Notes
Hexapod with Image Derotator Brings Innovative Metrology Tools to Industrial Manufacturing(530.2 kB, PDF) Hexapod Solutions for Mass Transfer & Die Repair in Micro LED Manufacturing Equipment(2.1 MB, PDF) Precision Alignment in Photonic Device Assembly and Testing(2.6 MB, PDF)
2D Product Drawings
HXP1000-MECA(725.8 kB, PDF)
Technical Notes
Motion in 3-D: Newport Hexapod Coordinate Systems(476.8 kB, PDF) Maintaining HXP Position after Controller Reboot(67.3 kB, PDF) GroupPositionCurrentGet command and HXP controller.pdf(915.7 kB, PDF)
Software
Maintaining HXP Position after Controller Reboot(44.4 kB, ZIP)
Literature
HexaViz Hexapod Brochure(2.5 MB, PDF) HXP1000 Data Sheet.pdf(2.4 MB, PDF) DS-102104 HXP1000 Datasheet.pdf(2.1 MB, PDF) HXP Series Hexapod Brochure(2.3 MB, PDF)
Manuals
XPS-D Configuration Manual.pdf(5.6 MB, PDF) HXP1000-MECA User Manual(5 MB, PDF) XPS-D and HXP-ELEC-D Start-Up Manual.pdf(8.2 MB, PDF) XPS Unified - Programmer's Manual.pdf(6.8 MB, PDF)
