ND Filter Rotator, Compact, 7.5 mm Hub, 8-32 and M4

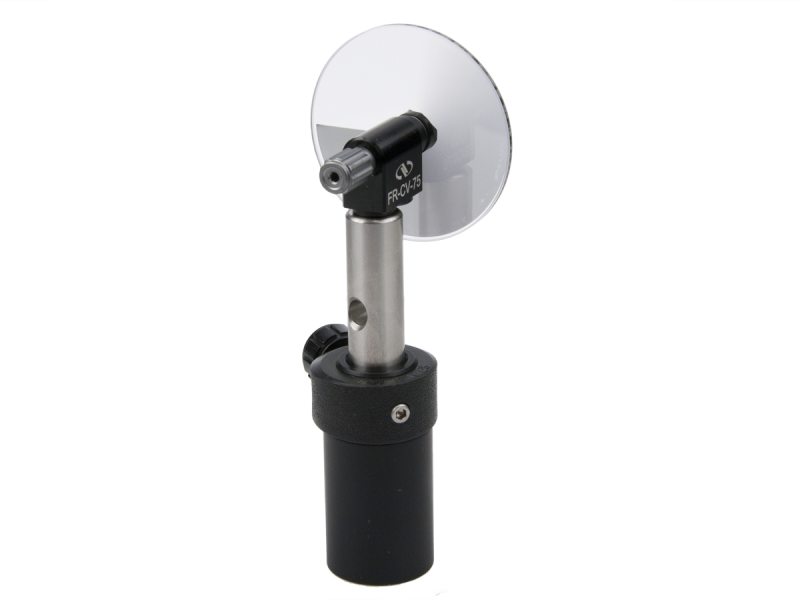

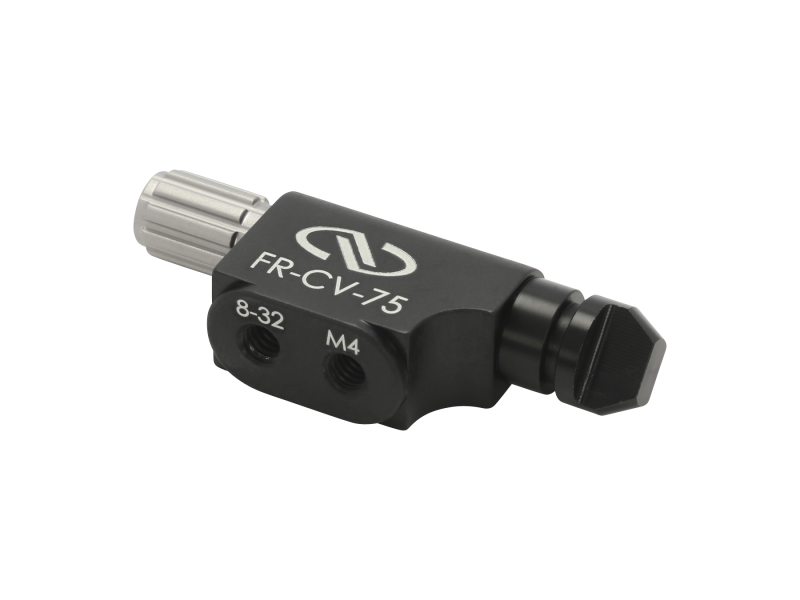

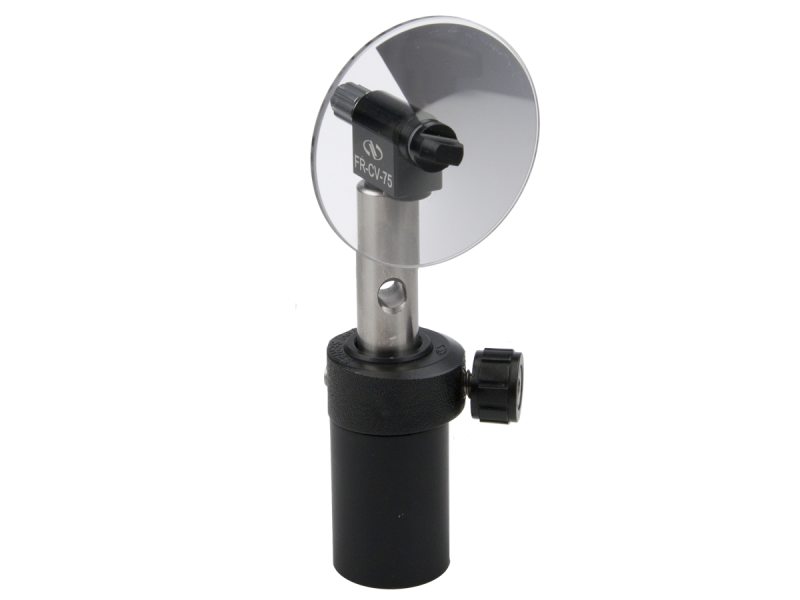

The FR-CV-75 provides rotational adjustment for any of Newport’s Circular Linear Variable ND Filters having a Ø7.5 mm inner diameter. The slim design minimizes blockage of the filter's clear aperture and, with its clamping thumbscrew design, it can accommodate filter thicknesses from 2 to 13 mm. This mount is unique in that it has both English (8-32) and metric (M4) post mounting threads clearly marked on its base. To prevent inadvertent rotation after adjustment, the FR-CV-75 incorporates a side-located locking screw.

Specifications

Technical Specs

Filter Shape
Round
Filter Diameter
127 mm
Maximum Thickness
7.5 mm
Number of Filters
1
Filter Type
Neutral Density
Mechanism
Thumbscrew Clamp

Mounting Threads
8-32 and M4
Material
Anodized Aluminum
Filter Size Circular or Square
127 mm

Filter Shape
Round
Filter Diameter
127 mm
Maximum Thickness
7.5 mm
Number of Filters
1
Filter Type
Neutral Density
Mechanism
Thumbscrew Clamp

Mounting Threads
8-32 and M4
Material
Anodized Aluminum
Filter Size Circular or Square
127 mm
