ND Filter Rotator, Compact, 1.0 in. Hub, 1/4-20
ND Filter Rotator, Compact, 1.0 in. Hub, 1/4-20
Model: 941
Product Series Overview

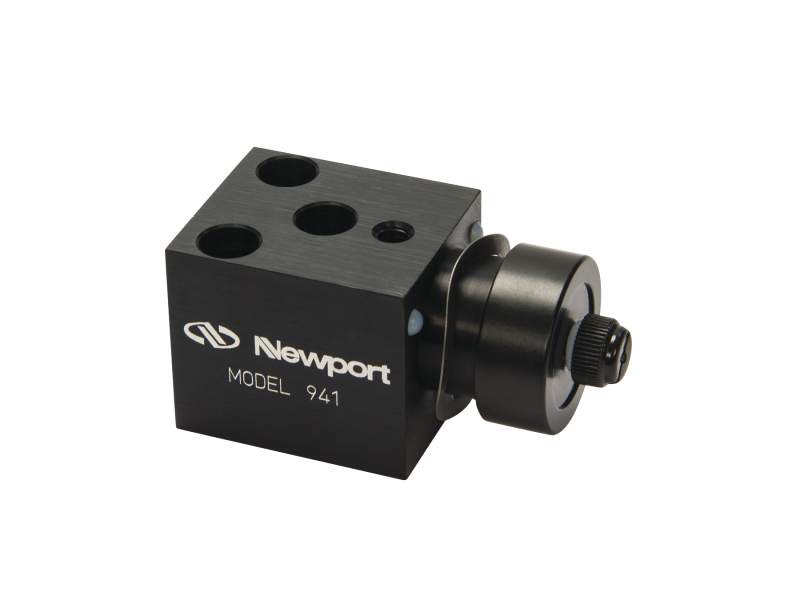

Variable Neutral Density Filter MountsThe 941 Variable Neutral Density Filter Rotation Mount offers the widest possible aperture and provides basic mounting compatibility with posts, platforms and clamps. The spindle is integrated into a block with an array of tapped and clearance holes. Circular Variable Metallic Neutral Density Filters are sold separately.
Specifications
- Filter ShapeRound
- Filter Diameter127 mm
- Maximum Thickness25.4 mm
- Number of Filters1
- Filter TypeNeutral Density
- MechanismThumbscrew Clamp
- Mounting Threads8-32 and M4
- MaterialAnodized Aluminum
- Filter Size Circular or Square127 mm
Resources & Downloads
Other
941 RoHS Certificate(279.1 kB, PDF)
