Fiber Patch Cord, High Power Density, 500-2100 nm, F-MFC, 3 m, FC.
Fiber Patch Cord, High Power Density, 500-2100 nm, F-MFC, 3 m, FC.
Model: F-MFC-C-3FC
In Stock
Product Series Overview

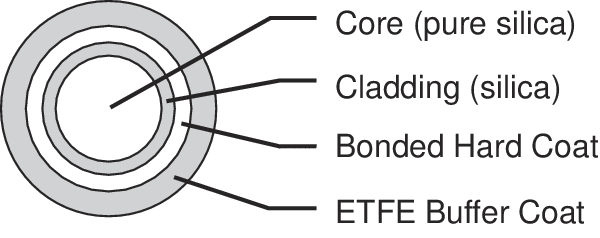

Standard Multimode Fiber Patch CablesThe F-MFC-C-3FC High Power Density Fiber Patch Cord uses F-MFC fiber with a protective jacket added. This fiber patch cord is 3 meter in length and has FC/PC connectors at both ends. It supports 500 to 2100 nm operation.
Custom Multimode Patch Cables
Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.
Available Off-the-shelf
We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths from 250 to 2100 nm. The standard patch cables are available in several different lengths and connector types. These fibers have an inner jacket surrounded by a layer of Aramid yarn for extra protection. A PVC cable jacket provides additional environmental protection. If there is not a standard patch cable available for your application, please try our custom patch cable configurator:F-PATCH-CUSTOM .
Excellent Performance
Our Standard Patch Cable exhibit low attenuation while utilizing either step-index and graded-index designs and have a uniform core refractive index and a matched-clad profile.
