Fiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm
Fiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm
Model: F-CPL-F16150
In Stock
Product Series Overview
1x4, 1x8 and 1x16 Singlemode Fiber CouplersThe F-CPL-F16150 Single Mode Wavelength Flattened Coupler allows bi-directional coupling and can be used to either split or combine signals with an even ratio. It uses an SMF-28e+ fiber, with low insertion loss and optimized over 1550 nm window with ±40 nm Bandwidth. This 1x16 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails, unterminated.
Rugged Housing and Cabling with Pigtail, FC/UPC or FC/APC Connections Available

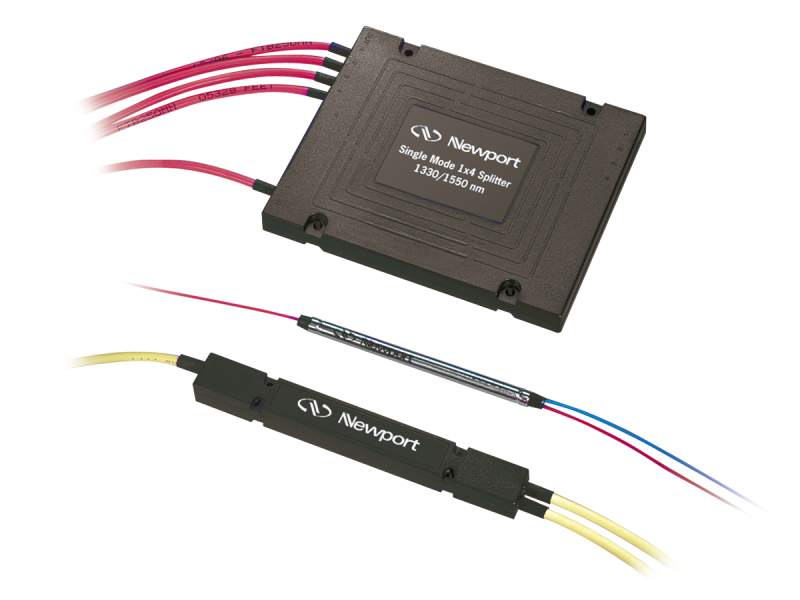

All the couplers feature a fully ruggedized black plastic housing with 1 m long, 3 mm PVC covered pigtails. All standard models come non-terminated, FC/UPC, or FC/APC.
Wavelength Flattened Fiber Optic Couplers
Wavelength flattened fiber optic couplers extend the optimal wavelength range to a band of ±40 nm around the center wavelength of 1550 nm. The wavelength flattened couplers are ideal solutions for applications that require some spectral range around 1550 nm. These devices come in 1x8 and 1x16 configurations.
Specifications
- Type1x16 Wavelength Flattened Coupler
- Fiber TypeSinglemode
- Fiber ConnectorBare Fiber
- Operating Wavelength1550 nm
- Maximum Insertion Loss14 dB
- Bandwidth±40 nm
- Maximum Optical Power2 W
- Option Code74
- Package TypeE
- Operating Humidity90–95%
- Uniformity2.4 dB
Resources & Downloads
2D Product Drawings
Fiber pkg -E-S(67.2 kB, PDF)
