Diffraction Grating Mount, 12.5 mm, Fixed
Diffraction Grating Mount, 12.5 mm, Fixed
Model: DGF-12
In Stock
Product Series Overview

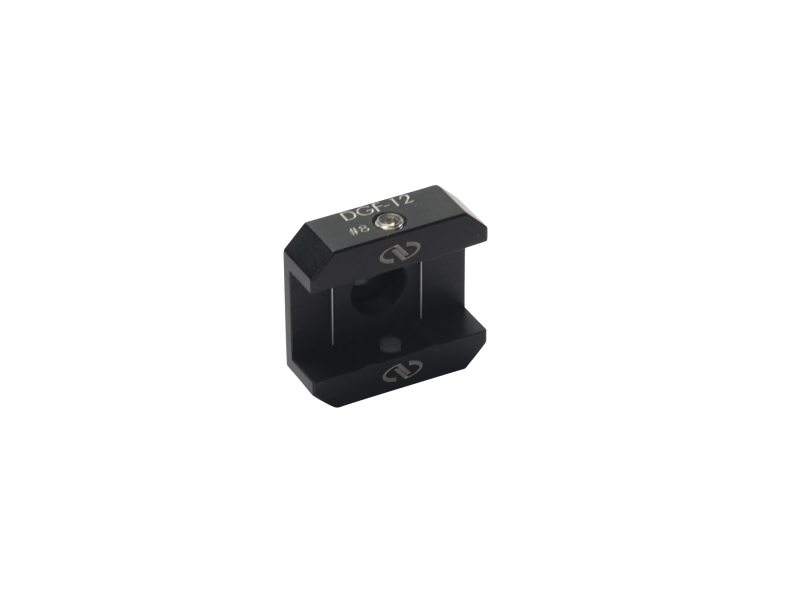

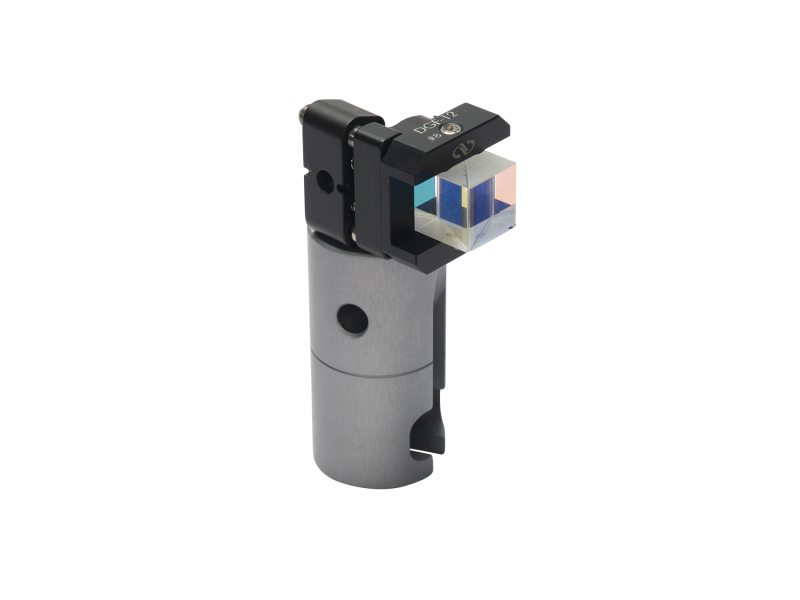

Adjustable Diffraction Grating MountsThe DGF-12 is fixed diffraction grating adapter/mount designed to hold square or rectangular gratings that are 12.5 mm in height . This compact mount is designed to be either post mounted or mounted into compatible 1/2-in. mirror mounts which provide pitch/yaw adjustment. It can be post mounted via either its 8-32 or M4 thread.
Resources & Downloads
2D Product Drawings
DGF-12 Drawing(120 kB, PDF)
Other
DGF-12 RoHS Certificate(277.6 kB, PDF) DGF-12_RoHS2021.pdf(680.8 kB, PDF)
