Model: CONEX-AG-GON-LP
Product Series Overview

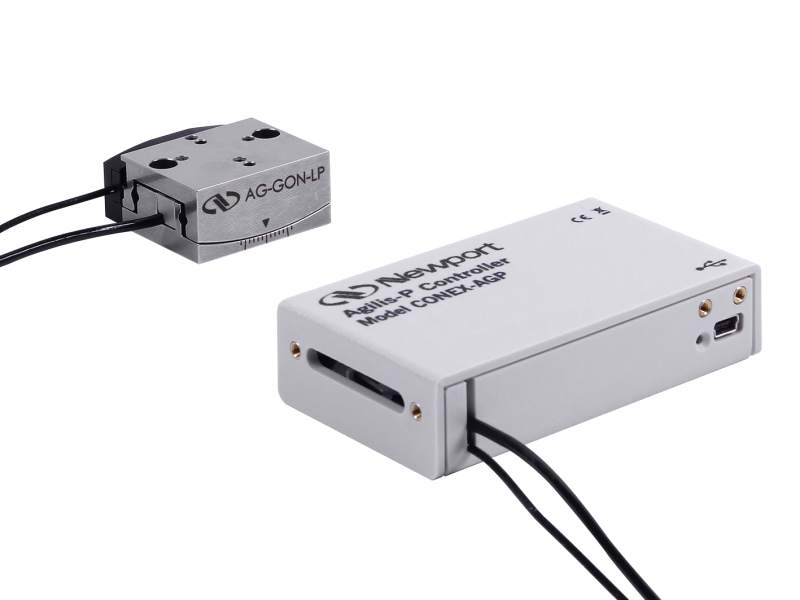

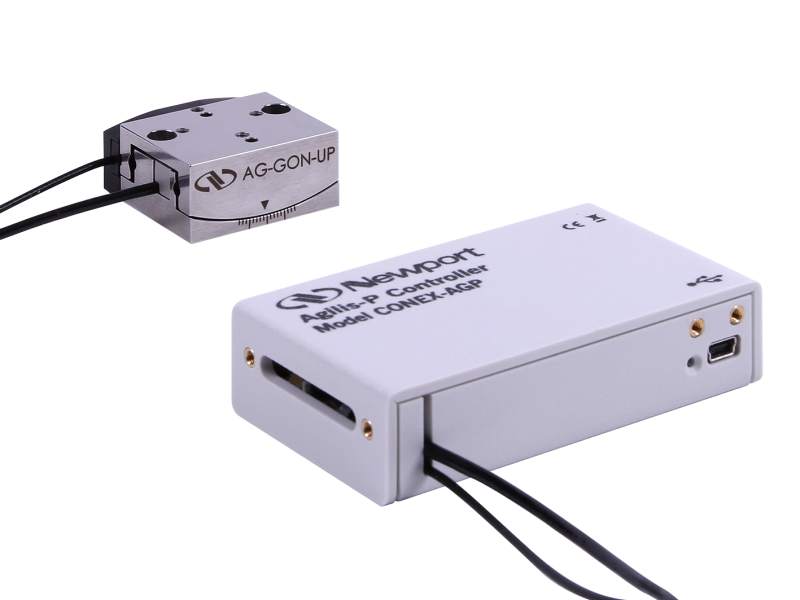

Piezo Goniometer With CONEX ControllerThe CONEX-AG-GON-LP is a piezo motor driven goniometric cradle with direct encoder feedback and integrated closed-loop piezo motor controller/driver. The compact CONEX-AG-GON-LP has its rotation axis above the mounting platform for easy access and provides very compact tip-tilt platform when stacked with CONEX-AG-GON-UP. It uses piezo motor with a built-in encoder enabling high position repeatability and resolution.
Comes with a USB cable. For OEM applications, an optional retainer to secure the USB and power cables is available. In addition, RS232 and RS485 communication are available at the board level.
Specifications
- Stage TypeGoniometer
- Angular Range-5.5 to 5.5°
- Centered Load Capacity3.5 N
- Drive TypePiezo Motor
- Maximum Speed0.33°/s
- Minimum Incremental Motion0.25 mdeg
- Uni-directional Repeatability, Guaranteed0.5 mdeg
- 55 mm
- Thread TypeM3
- Origin Repeatability0.5 mdeg
- FeedbackDirect read encoder
- Encoder Resolution0.09 mdeg
- MaterialStainless Steel
- Platform Size40 x 40 mm
- Height19 mm
- Weight0.171 kg
Resources & Downloads
3D Product Models
2D Product Drawings
CONEX-AG-GON-LP(98.9 kB, PDF)
Manuals
CONEX-AGP - Applet Manual.pdf(1 MB, PDF) CONEX-AGP - Command Interface Manual.pdf(555 kB, PDF) CONEX-AGP - Controller Documentation.pdf(1.6 MB, PDF) CONEX-AGP - Introduction, Safety & Service.pdf(1.1 MB, PDF)
Literature
CONEX-AG-GON-xP Data Sheet(427.4 kB, PDF) CONEX Datasheet(4.2 MB, PDF)
Software
CONEX-AGP-2.0.0(16 MB, ZIP)
Technical Notes
MKS GUI’s and Microsoft.NET Framework 3.5 SP1(1.4 MB, PDF) Driving Multiple Piezo Motors on a Single Workstation(2.7 MB, PDF)
