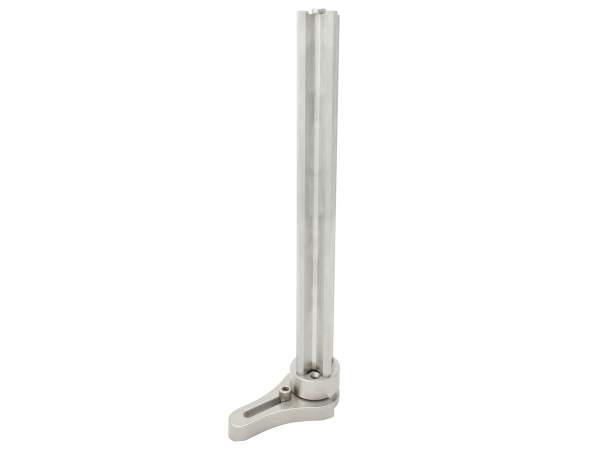

Rail Post, 4-sided, Magnetic
The BSC-R is the same magnetic rail post used on the BSD-2R, Rail Periscope. It incorporates a stainless steel 4-sided rail and a 1.5-in. (38-mm) diameter magnetic pedestal base. A clamping fork is also included. The BSC-R can be used to create custom versions of the standard BSD-2R or it can be used with the X26 carriers.
Rail Post Keeps Mirror Mounts Straight
A stainless steel rail-post is used to prevent inadvertent rotation of the mirror mounts during beam height adjustment. The rail post also includes a powerful magnetic pedestal base with 12 lb. of holding force for safe placement prior to clamp down with an included fork.
Resources & Downloads
2D Product Drawings
BSC-R-312(109.9 kB, PDF)
Other
BSC-R RoHS Certificate(0, PDF)
