Optic Mount, Beam Steering, Rail Periscope
Optic Mount, Beam Steering, Rail Periscope
Model: BSC-M
Product Series Overview

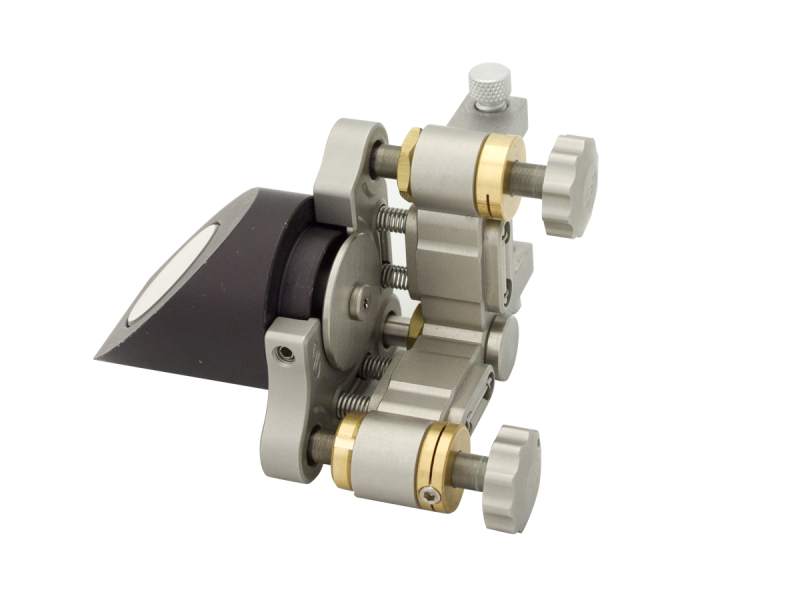

High Stability Rail PeriscopeThe BSC-M is the same beam steering mount used on the BSD-2R, Rail Periscope. It incorporates a stainless steel kinematic mount, a steel rail carrier compatible with the X26 optical rails, and a 45-degree mirror holder which is held captive to the kinematic mount so that it will not fall out during manual rotation adjustment. The BSC-M can be used to create custom height versions of the standard BSD-2R, Rail Periscope or it can be used on the X26 rails. Mirror is sold separately.
Captive 45-degree Mirror Holders

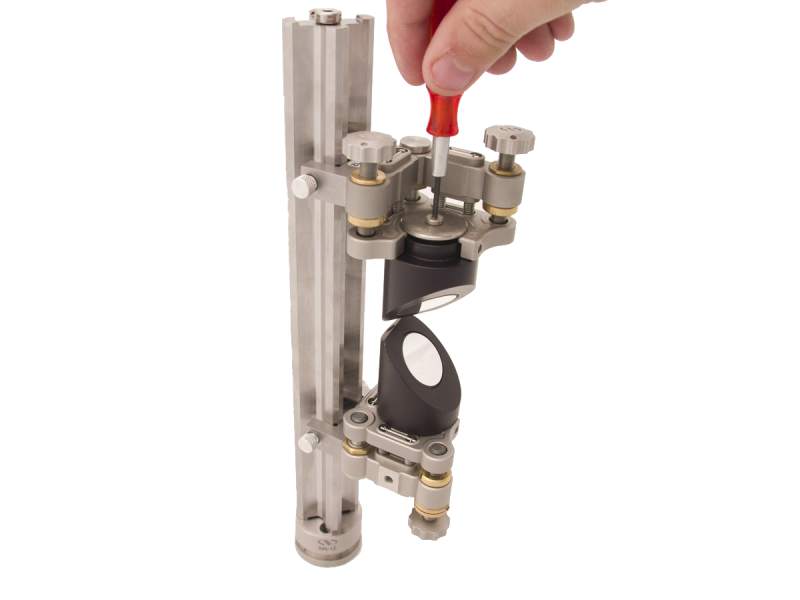

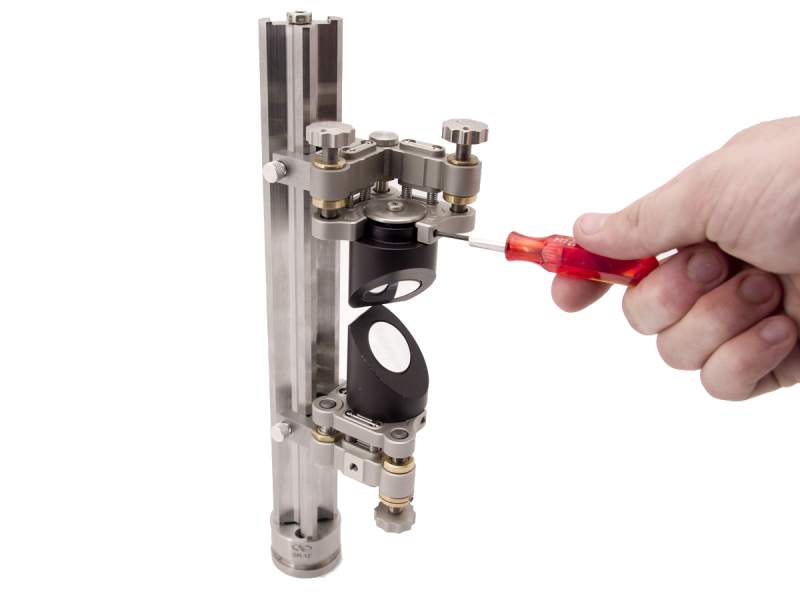

Captive 45-degree mirror holders will not fall out while being rotated.
Stainless Steel Suprema® Mounts Maximize Performance
Suprema mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. Adjustment screws have 127 TPI threads for increased sensitivity and smooth adjustment feel. Two-actuator configurations have tip and tilt adjustability over a range of ± 7°.
Resources & Downloads
2D Product Drawings
BSC-M-314(217.2 kB, PDF)
Other
BSC-M RoHS Certificate(279.9 kB, PDF)
