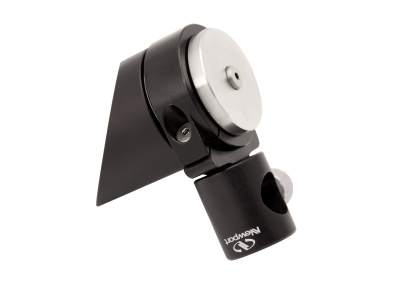

Optic Mount, Beam Steering, Fixed Periscope, Top
Optic Mount, Beam Steering, Fixed Periscope, Top
Model: BSC-FMT
In Stock
Product Series Overview
Fixed PeriscopesThe BSC-FMT is the same beam steering mount used on the BSD-F, Fixed Periscope. It incorporates a 45-degree mirror holder which is held captive to the post mount so that it will not fall out during manual rotation adjustment. The BSC-FMT can be used to create custom height versions of the standard BSD-F, or can be used for basic vertical beam folding.
Resources & Downloads
2D Product Drawings
BSD-FMB(131.2 kB, PDF)
Other
BSC-FMT RoHS Certificate(0, PDF)
