Slotted Extension Base Pack, BPH Series Optical Post Holders, Qty 5
Slotted Extension Base Pack, BPH Series Optical Post Holders, Qty 5
Model: BPH-XB-5
Product Series Overview

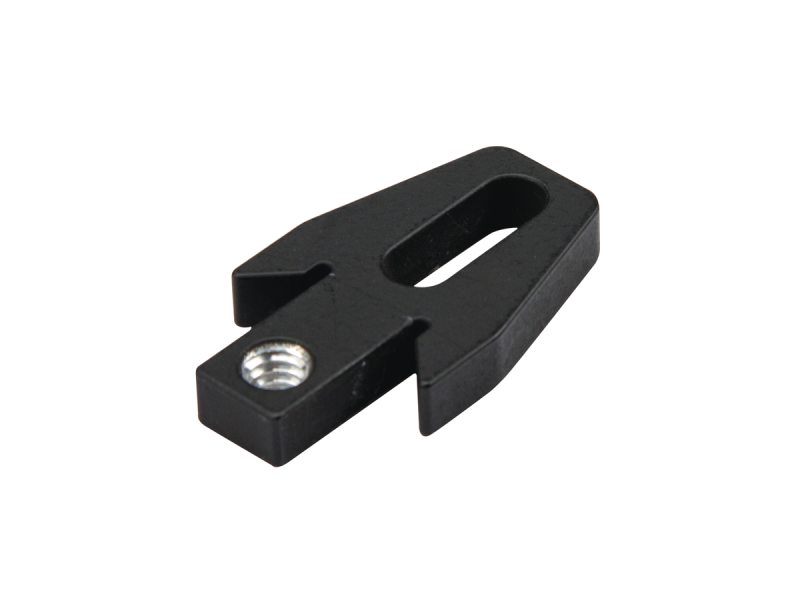

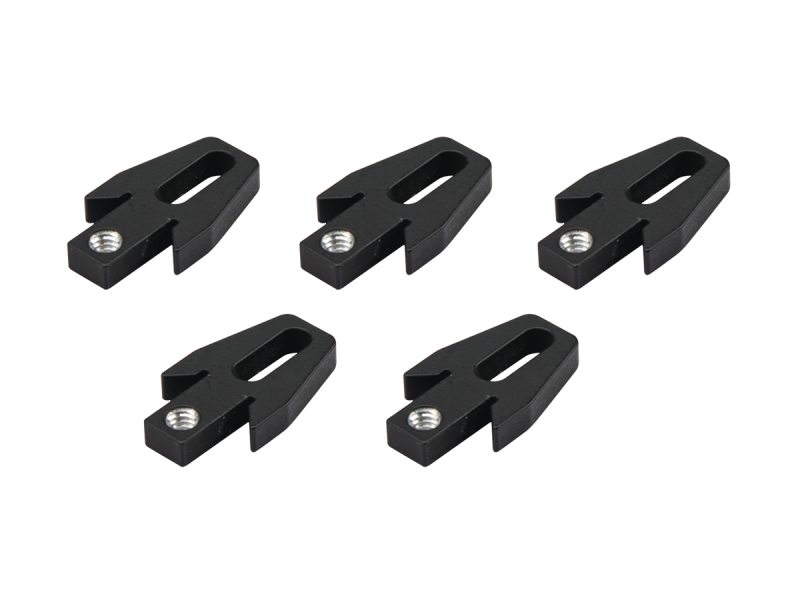

Non-Bridging Slotted-Base Optical Post HoldersThe BPH-XB-5 is a pack of five slotted extension bases for use with the BPH-series of Multifunction Post Holders. The Extension Base slides into the bottom of any of the BPH-series post holders and is secured with a screw, converting the single-slotted BPH post holder into one with a double-slotted base.
Resources & Downloads
2D Product Drawings
BPH-XB-321(81.6 kB, PDF)
Other
BPH-XB-5 RoHS Certificate(277.5 kB, PDF) BPH-XB-5_RoHS2021.pdf(680.2 kB, PDF)
