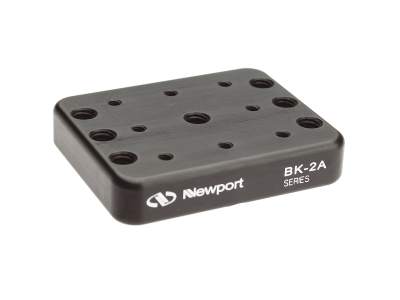

Top Plate, For BK-2A Kinematic Base

Top Plate, For BK-2A Kinematic Base

Model: BK-2A-T

$73

In Stock

Compare

Add to List

Product Series Overview

Kinematic Bases

The BK-2A-T Top Plate is a spare for BK-2A Kinematic Bases.

Specifications

Technical Specs

Type

Kinematic Base Top Plate
Base size

50.5 x 62.2 mm
Thread Type

6-32 and 1/4-20

Material

Aluminum

Type

Kinematic Base Top Plate
Base size

50.5 x 62.2 mm
Thread Type

6-32 and 1/4-20

Material

Aluminum

Resources & Downloads

Other

BK-2A-T RoHS Certificate (277.4 kB, PDF)
BK-2A-T_RoHS2021.pdf (679.7 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BK-2A-S (161.5 kB, PDF)
