Motor Controller, Piezo, 8-Axis, Agilis™, OEM, USB/RS232/RS485
Motor Controller, Piezo, 8-Axis, Agilis™, OEM, USB/RS232/RS485
Model: AG-UC8PC
Product Series Overview

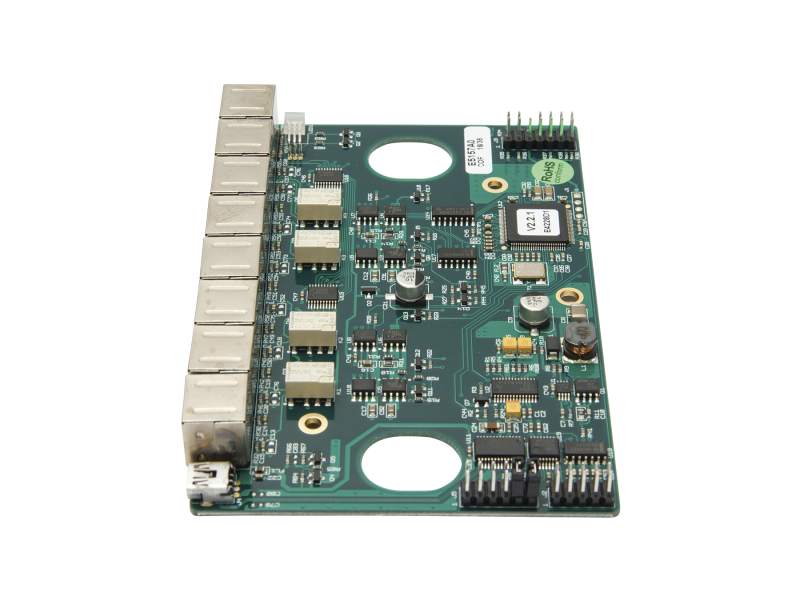

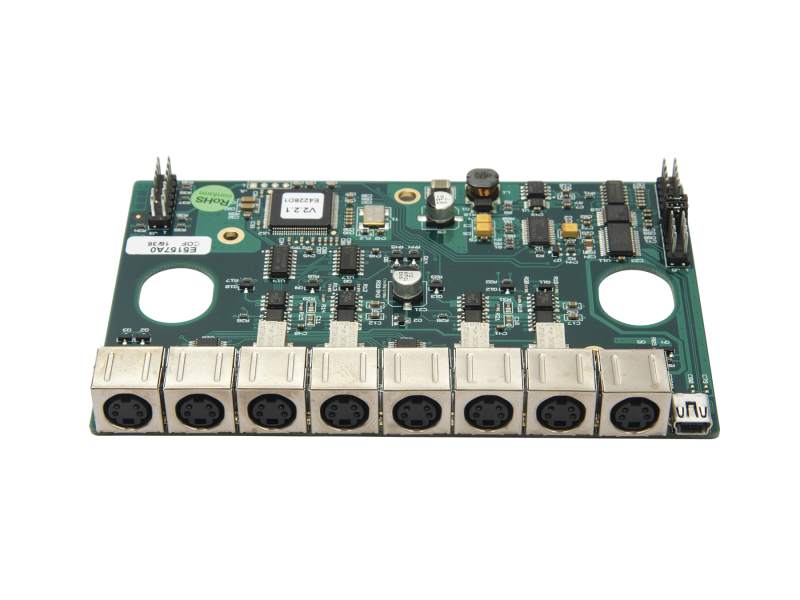

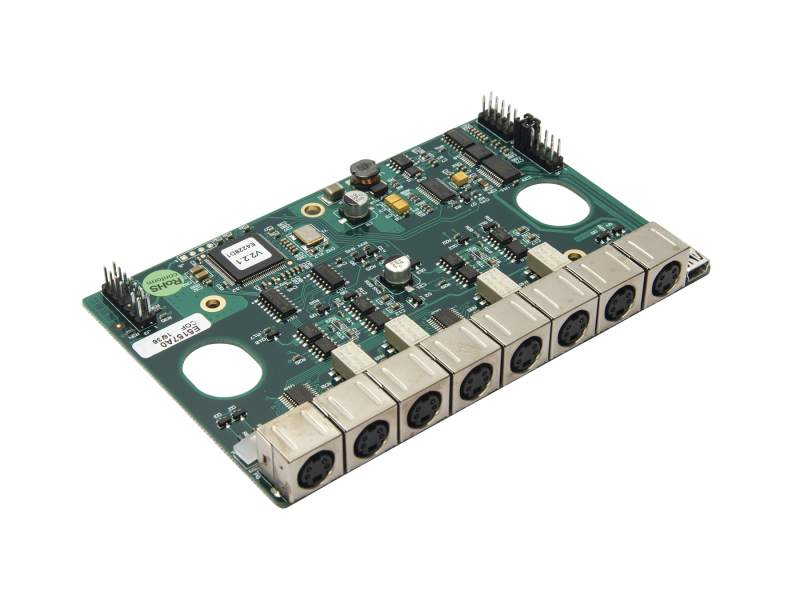

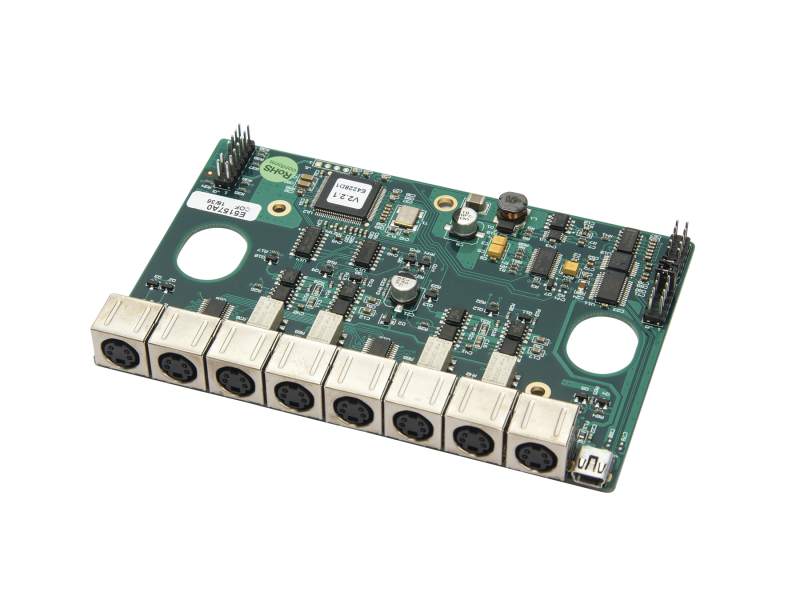

Agilis™ Piezo Motion ControllersThe AG-UC8PC Agilis™ Controller provides USB computer control of up to eight Agilis axes and is primarily intended for industrial customers and system integrators. It provides the same features and functions as the AG-UC8 controller, but comes as a PC-card with no enclosure and no cables.
In addition to the mini-USB connector for USB communication (same as AG-UC8), the AG-UC8PC provides an additional HE10 connector on the board for RS232 and RS485 communication. The active communication channel is set by jumpers. An LED indicates the current controller status.

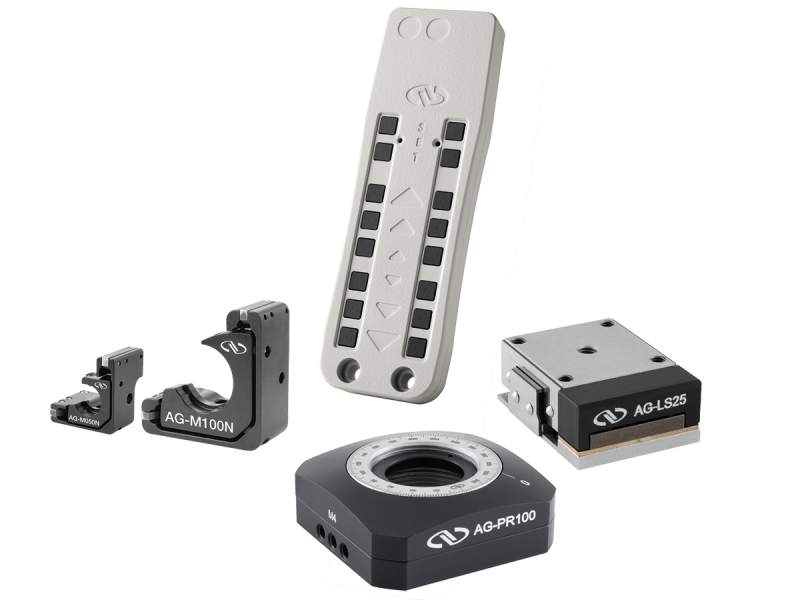

Compatible with Agilis Nanopositioners
Agilis motion controllers are used to drive Agilis nanopositioners. An Agilis optical mount is driven by 2 piezo motors whereas, an Agilis linear or rotation stage are driven by one piezo motor only.
Resources & Downloads
Software
AG-UC2-UC8-3.0.0(3.6 MB, ZIP)
Literature
Agilis™ Series Piezo Motor Driven Positioners(1.7 MB, PDF)
2D Product Drawings
AG-UC8PC-S(164 kB, PDF)
Other
MKS EU ROHS3 - AG-UC8PC.pdf(887.5 kB, PDF)
Manuals
Agilis Piezo Motor Driven Components User Manual(2.6 MB, PDF)
