Clamping Fork, Small Pedestal, Captive M6 Screw

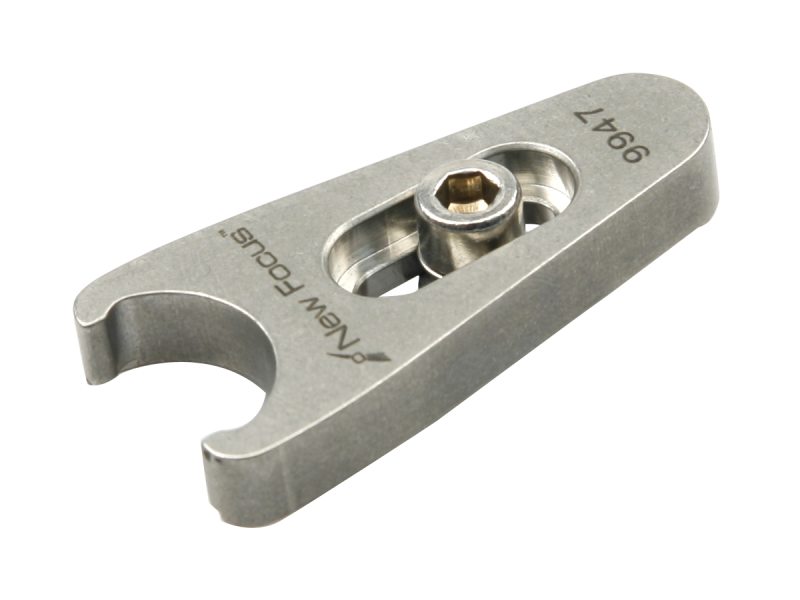

The 9947-M Small Pedestal Base Clamping Fork allows you to mount Small Optical Pedestals anywhere on an optical table. The M6 socket head screw is held captive to the fork which means you will never lose it. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support.
Resources & Downloads
2D Product Drawings
9947RC(212.1 kB, PDF)
