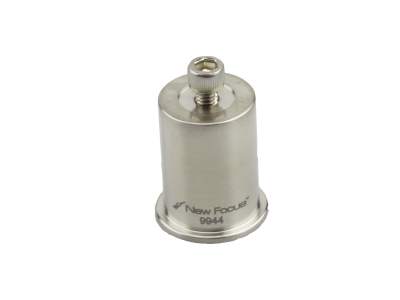

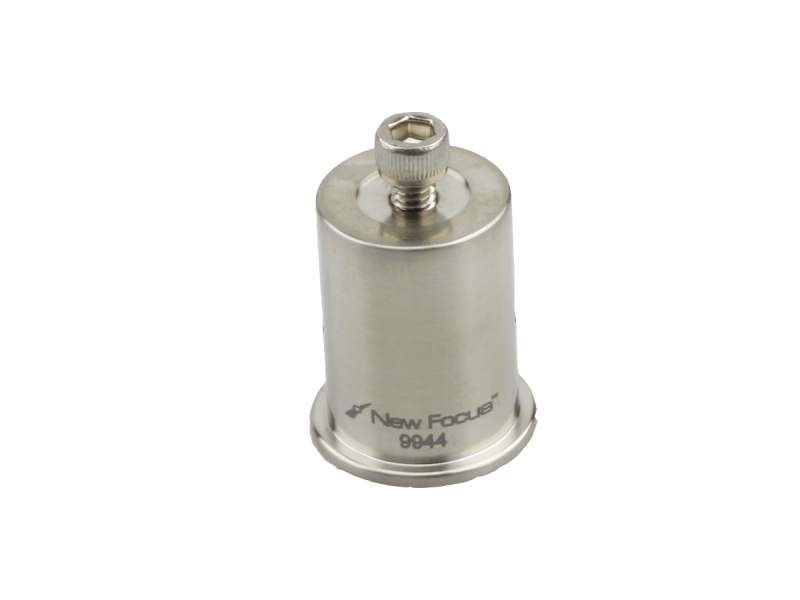

Optical Pedestal, 25.4 mm Height, 0.7 in. Diameter, M4 Thread

Model: 9944-M

$35

In Stock

Compare

Add to List

Product Series Overview

0.7 in. Optical Pedestals

The 9944-M Small Optical Pedestal allows you to mount our tiny mirror mounts to a full sized optical table. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support. The 9944 is 25.4 mm tall and is used to bring a tiny mount to a standard 12.7 mm increment beam height. Every pedestal has an M4 threaded hole on each end.

Specifications

Technical Specs

Type

Optical Pedestal
Height

25.4 mm
Thread Type

M4

Material

Stainless Steel
Diameter

17.8 mm

Type

Optical Pedestal
Height

25.4 mm
Thread Type

M4

Material

Stainless Steel
Diameter

17.8 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9944-45-46-RC (215.2 kB, PDF)
