Optical Pedestal, 9.5 mm Height, 0.7 in. Diameter, M2 Thread
Optical Pedestal, 9.5 mm Height, 0.7 in. Diameter, M2 Thread
Model: 9942-M
In Stock
Product Series Overview

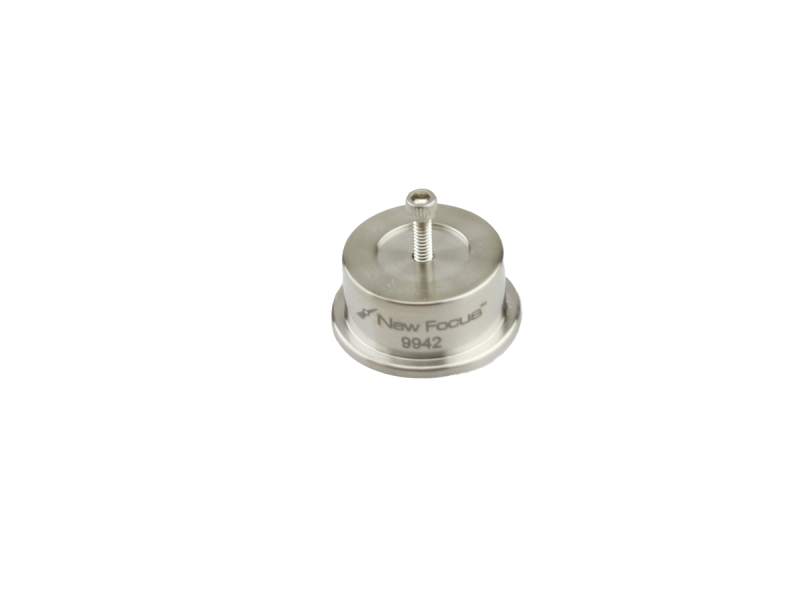

0.7 in. Optical PedestalsThe 9942-M Small Optical Pedestal allows you to mount our tiny mirror mounts to a full sized optical table. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support. The 9943-M is 9.5 mm tall and is used to bring a tiny mount to a standard 12.7 mm increment beam height. This pedestal has an M2 threaded hole on the top and an M4 threaded hole on the bottom.
Resources & Downloads
2D Product Drawings
9944-45-46-RC(215.2 kB, PDF)
