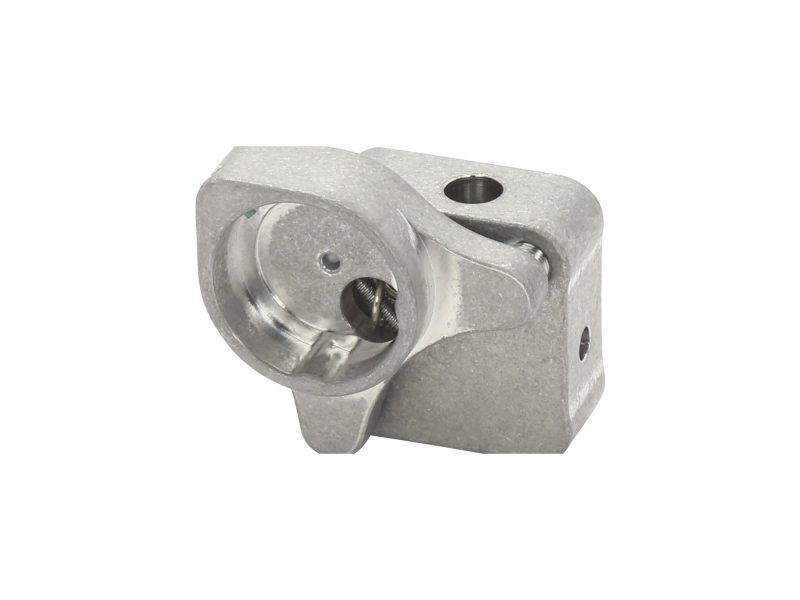

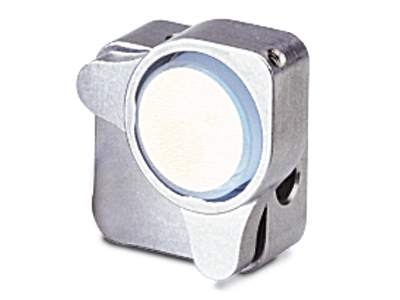

Mirror Mount, Gimbal, Corner, 0.5 in., 3 Allen-Keys

  • Mechanism
    Gimbal
  • Optic Diameter
    12.7 mm
  • Number of Actuators
    3
  • Actuator Drive
    Hex Key
  • Actuator Locks
    No
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    z, θx, θy
  • Sensitivity
    14.3 arc sec
  • Angular Range
    ±4°
  • Optic Loading
    Front
  • Material
    Stainless Steel
  • Drive Type
    Allen-Key, non-locking
  • Thread Type
    2-56 (M2) CLR
  • Optical Axis Height
    15.9 mm
