Mirror Mount, Tiny, Corner, Retaining Plate, 0.5 in., 3 Allen, Vacuum

Low Outgassing and LaserClean Mirror Mounts

Model: 9871-K-V

$271

In Stock

Compare

Product Series Overview

Low Outgassing and LaserClean Mirror Mounts

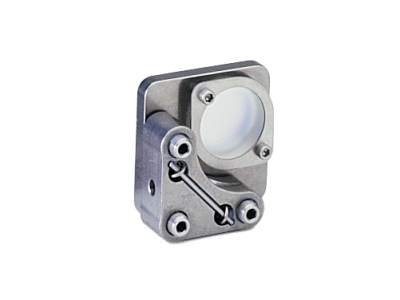

The 9871-K-V Vacuum Compatible Tiny Corner Mirror Mount with retaining plate is our most compact mount for applications where space is truly tight. Designed with the same mechanical principles as our larger classic mounts, it offers over 2 mm of pure translation and ±4° of tilt for 0.5 inch (12.7 mm) diameter optics. It has 6-80 adjustment screws and #2 (M2) clearance holes for mounting. All our Tiny mounts come standard without knobs. If you need knobs to adjust these mounts in your experiment, you can order our Model 9365 Tiny knobs.

Specifications

Technical Specs

Type
Precision
Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
3
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
14.3 arc sec
Angular Range
±4°

Actuator Orientation
Right-handed
Optic Loading
Rear
Material
Stainless Steel
Drive Type
Allen-Key, non-locking
Thread Type
2-56 (M2) CLR
Optical Axis Height
15.9 mm
Optic Mounting
Retaining Plate
Vacuum Compatibility
High Vacuum (10-6 Torr)

Type
Precision
Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
3
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
14.3 arc sec
Angular Range
±4°

Actuator Orientation
Right-handed
Optic Loading
Rear
Material
Stainless Steel
Drive Type
Allen-Key, non-locking
Thread Type
2-56 (M2) CLR
Optical Axis Height
15.9 mm
Optic Mounting
Retaining Plate
Vacuum Compatibility
High Vacuum (10-6 Torr)

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9871j-Drawing(103.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
M-SK-ASocket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	Contact Us	$135
AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
TR-E2E8-10Thread Adaptor, 8-32 Male to 2-56 Female , pack of 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$57
TR-M2M4-10Thread Adaptor, M4 Male to M2 Female , pack of 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$57

Similar

Description	Compatibility	Avail.	Price
9872-K-VOpti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key, Vacuum	UNIVERSAL	Contact Us	$346
9873-K-VBlank Plate Mount, Tiny, 3 Allen, Vacuum	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$271
9871-KMirror Mount, Tiny, Corner, 0.5 in., 3 Allen-Keys, Retaining Plate	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$173

Compatible

Description	Compatibility	Avail.	Price
M-UMR5.16Linear Stage, Double-Row Ball Bearing, 16 mm Travel, M3, M4 and M6	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$353
M-UMR8.25Linear Stage, Double-Row Ball Bearing, 25 mm Travel, M4 and M6	METRIC	2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$456
M-PS-1Optical Pedestal, 25.4 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$30
M-PS-2Optical Pedestal, 50.8 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$32
M-PS-3Optical Pedestal, 76.2 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$36
