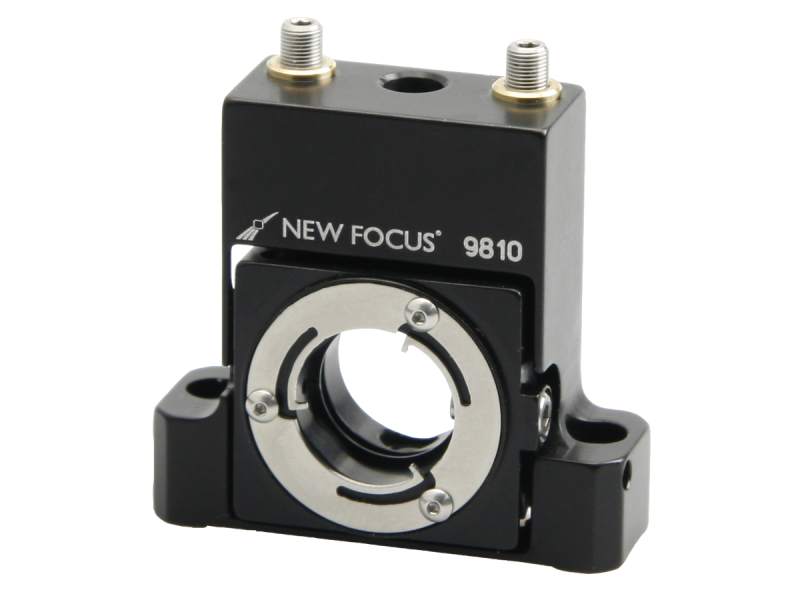

Mirror Mount, Stability, Top Adjust, 0.5 in., Thick, 2 Allen-Keys

  • Mechanism
    Kinematic
  • Optic Diameter
    12.7 mm
  • Number of Actuators
    2
  • Actuator Drive
    Hex Key
  • Actuator Locks
    No
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    7.6 arc sec
  • Angular Range
    ±4°
  • Optic Loading
    Front
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, non-locking
  • Thread Type
    4-40 (M2.5) CLR
  • Optical Axis Height
    12.7 mm
  • Optic Thickness
    5.0 mm
  • Special Features
    Low-Stress Mounting
