Platform Optical Mount, 2.0 x 2.0 in., 3 Allen-Key Adjustment, M4 & 8-32

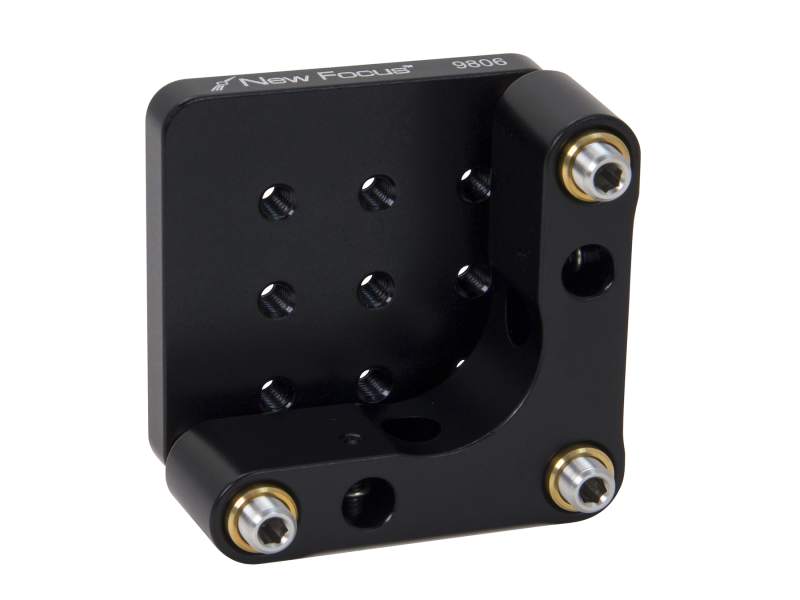

The 9806-K Blank Plate Optic Mount is a Allen-key actuated platform mount that has four threaded M4 and five threaded 8-32 holes so you can mount that unusual optic. Use this mount horizontally as a low-cost tip-tilt stage or vertically as a more traditional optic mount. To mount the blank plate horizontally with our pedestal-riser system, use a Model 9141 pedestal clamp.
Specifications
- MechanismKinematic
- Platform Size50.8 x 50.8 mm
- Number of Actuators3
- Actuator LocksNo
- Adjustment Screw Thread80 TPI
- z, θx, θy
- 4.4 arc sec
- Angular Range±4°
- MaterialAnodized Aluminum
- Allen-Key, non-locking
- Platform Thread8-32 & M4 THD
- Mounting Holes8-32 (M4) CLR
- Weight107 g
