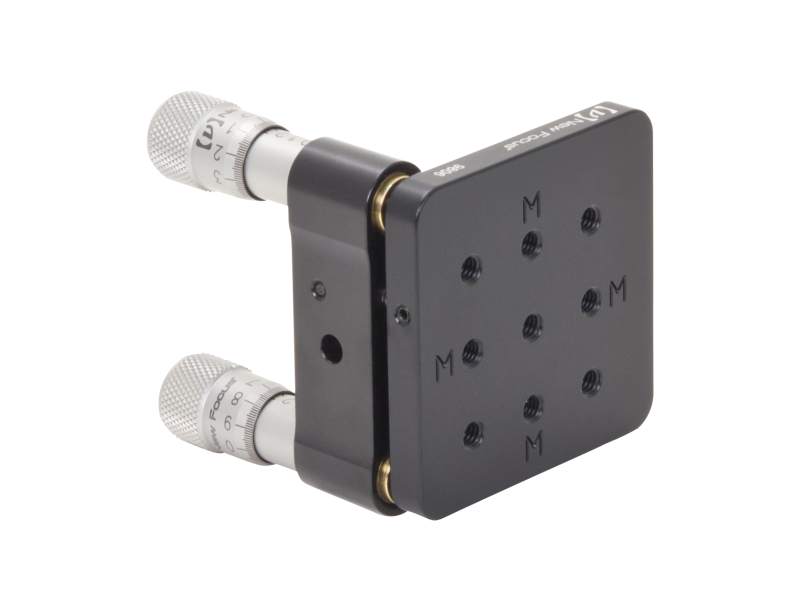

Platform Optical Mount, 2 x 2 in., 3 Micrometer Adjustment, M4 & 8-32

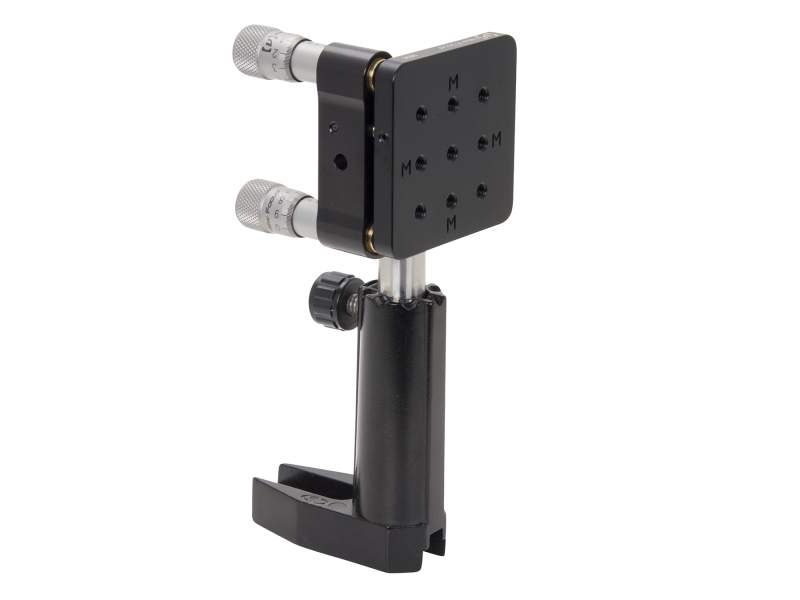

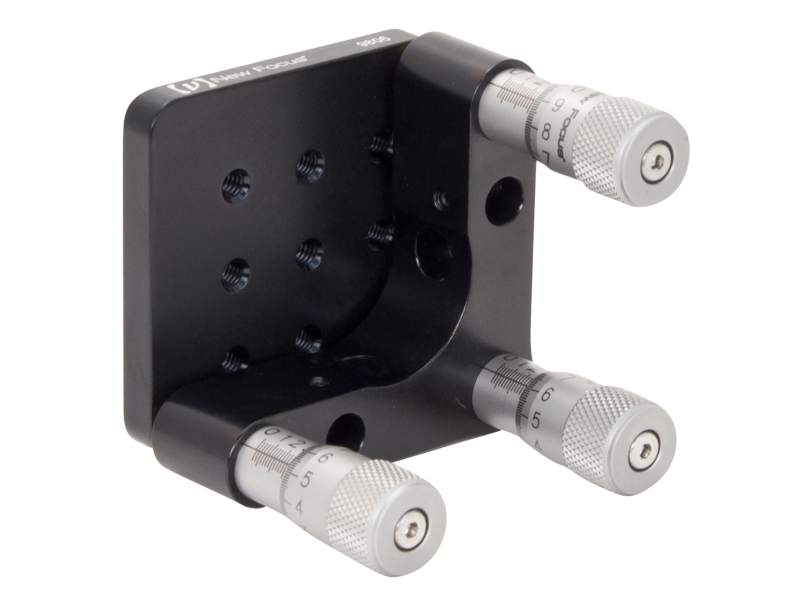

The 9806-C Blank Plate Optic Mount is a micrometer actuated platform mount that has four threaded M4 and five threaded 8-32 holes so you can mount that unusual optic. Use this mount horizontally as a low-cost tip-tilt stage or vertically as a more traditional optic mount. The combination of our proprietary precision knob actuated 1/4-100 screws and bushings, and sapphire seats gives you superior stability and precise repeatable adjustment. To mount the blank plate horizontally with our pedestal-riser system, use a Model 9141 pedestal clamp.

Specifications

Technical Specs

Mechanism
Kinematic
Platform Size
50.8 x 50.8 mm
Number of Actuators
3
Actuator Drive
Micrometer
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy

Sensitivity
4.4 arc sec
Material
Anodized Aluminum
Platform Thread
8-32 & M4 THD
Thread Type
8-32 (M4) CLR
Special Features
Threaded Platform

Mechanism
Kinematic
Platform Size
50.8 x 50.8 mm
Number of Actuators
3
Actuator Drive
Micrometer
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy

Sensitivity
4.4 arc sec
Material
Anodized Aluminum
Platform Thread
8-32 & M4 THD
Thread Type
8-32 (M4) CLR
Special Features
Threaded Platform

Resources & Downloads

2D Product Drawings

9806g-Drawing(191.7 kB, PDF)
