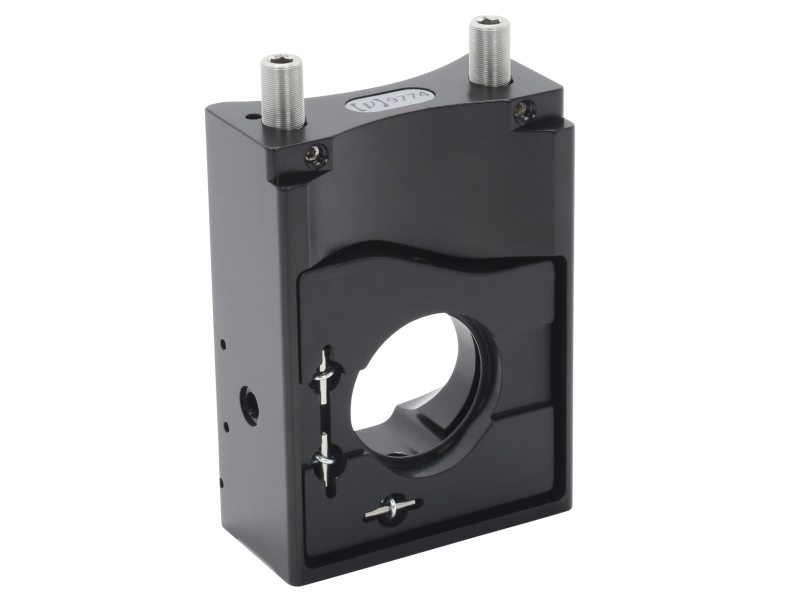

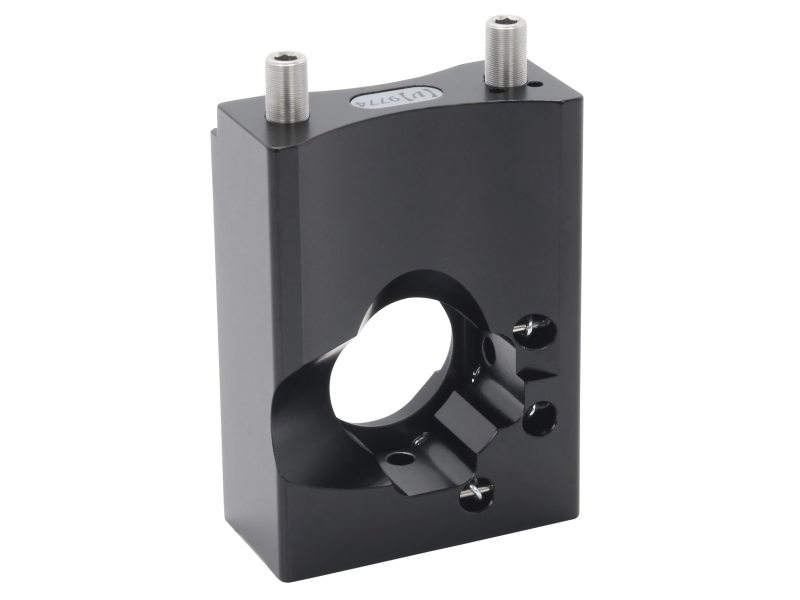

Mirror Mount, Top Adjust, 1.0 in. Diameter, 2 Allen-key Adjustment

The 9774-K Top Actuated Mirror Mount holds 1.0 in. (25.4 mm) diameter optics, and is ideal for use in compact spaces. It gives you easy access to both tip and tilt adjustments from the Allen-keys on top without worrying about blocking the beam. Top and side mounting schemes are compatible with post and pedestal mounting systems. Relieved bases and thick frames ensure stability, while standard beam heights allow for easy integration into your system. Built-in locks and stiff springs increase long-term stability.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
2.6 arc sec
Angular Range
±2°
Actuator Orientation
Top Adjust

Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
158 g

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
Yes
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
2.6 arc sec
Angular Range
±2°
Actuator Orientation
Top Adjust

Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
158 g

Resources & Downloads

2D Product Drawings

9774d-Drawing(311 kB, PDF)
