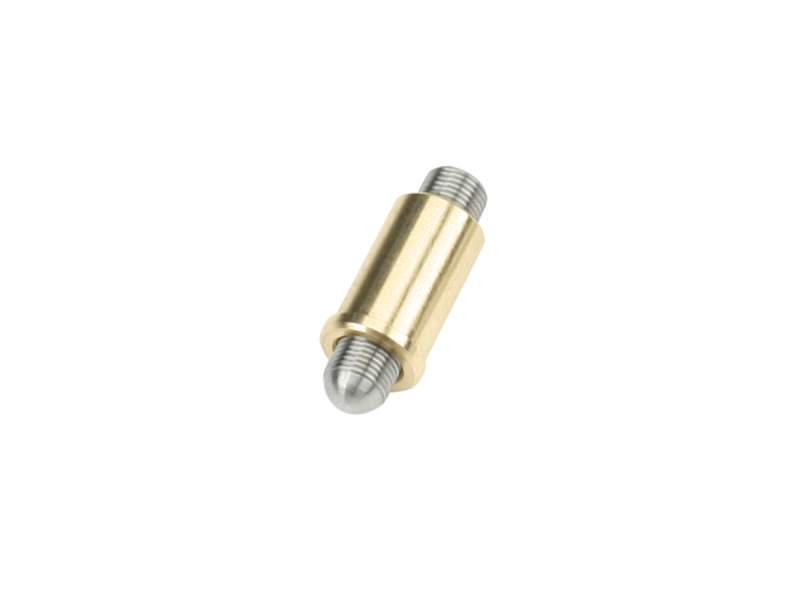

Adjustment Screw, Tiny, Hex, 5.1 mm Travel, Ball Tip, 6-80

The 9342-K Tiny Adjustment Screw is perfect if you need to build miniature mounts or positioners. We use these same screw sets in our pint-sized mounts, so you know you're getting the best quality. This ball tip adjustment screw has 80 threads per inch and 5.1 mm of travel with Hex-key adjustment. Built with the same proprietary process as our 1/4-80 screw sets, these screws feature tight tolerances and no excess grease, resulting in actuators with very smooth movement, high precision, and exceptional long-term and thermal stability.

Specifications

Technical Specs

Travel Range
5.1 mm
Adjustment Screw Thread
6-80
Drive Type
Hex
Axial Load Capacity
35 N
Lock
No Lock

Tip Style
Ball
Sensitivity
0.88 µm
Weight
1 g

Travel Range
5.1 mm
Adjustment Screw Thread
6-80
Drive Type
Hex
Axial Load Capacity
35 N
Lock
No Lock

Tip Style
Ball
Sensitivity
0.88 µm
Weight
1 g
