Thermopile Sensor, Slim, 20 W (4 W Standalone), 12 mm, 0.19-11 µm

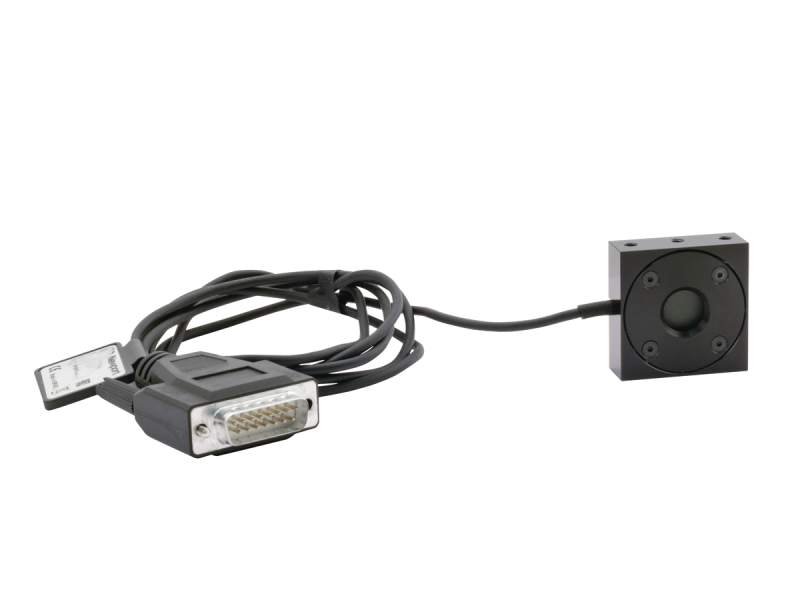

The 919P-020-12 Thermopile Sensor is a general purpose laser power sensor measuring laser power up to 20 W, when it is heat sinked to chassis. It can handle up to 4 watts when it is used free standing. Its BB absorber type is spectrally flat and covers the wavelength range 190 nm to 11 µm. It has an active diameter of 12 mm and can measure power from 10 mW to 20W and single shot energy from 6 mJ to 10 J. It has a 1/4-20 tapped hole for post or plate mounting and includes a 2.25 inch long 1/2 inch diameter post with a 1/4-20 tapped hole on both ends.

Specifications

Technical Specs

Absorber Type
BB - Broadband General Purpose
Detector Type
Thermopile
Spectral Range
0.19 to 11 µm
Maximum Measurable Power
4 W (standalone), 20 W (with a heat sink)
Sensor Size
Ø12 mm
Maximum Power Density
23 kW/cm²
Maximum Energy Density
<100 ns, 0.3 J/cm²
0.5 ms, 2 J/cm²
2 ms, 2 J/cm²
10 ms, 2 J/cm²
Power Noise Level
0.2 mW
Power Range
10 mW - 4 W (standalone), 20 W (with a heat sink)
Minimum Energy
20 mJ
Cooling
Heat Sink
Connector Type
DB15
Rise Time
0.8 s

Linearity
±1 %
Calibration Uncertainty
±1.9%
Repeatability
±0.5 %
Beam Size Dependence
±0.7 %
Detector Active Area
1.13 cm²
Operating Temperature Range
15°C to 35°C, <70% RH, non-condensing
Storage Temperature Range
0°C to 50°C, <90% RH
Cable Length
1.5 m
Dimensions
38 x 38 x 14 mm
Weight
0.2 kg
RoHS
Compliant

Absorber Type
BB - Broadband General Purpose
Detector Type
Thermopile
Spectral Range
0.19 to 11 µm
Maximum Measurable Power
4 W (standalone), 20 W (with a heat sink)
Sensor Size
Ø12 mm
Maximum Power Density
23 kW/cm²
Maximum Energy Density
<100 ns, 0.3 J/cm²
0.5 ms, 2 J/cm²
2 ms, 2 J/cm²
10 ms, 2 J/cm²
Power Noise Level
0.2 mW
Power Range
10 mW - 4 W (standalone), 20 W (with a heat sink)
Minimum Energy
20 mJ
Cooling
Heat Sink
Connector Type
DB15
Rise Time
0.8 s

Linearity
±1 %
Calibration Uncertainty
±1.9%
Repeatability
±0.5 %
Beam Size Dependence
±0.7 %
Detector Active Area
1.13 cm²
Operating Temperature Range
15°C to 35°C, <70% RH, non-condensing
Storage Temperature Range
0°C to 50°C, <90% RH
Cable Length
1.5 m
Dimensions
38 x 38 x 14 mm
Weight
0.2 kg
RoHS
Compliant
