Motorized Linear Stage, Crossed-Roller Bearing, 0.5 in., 8-32 & 1/4-20

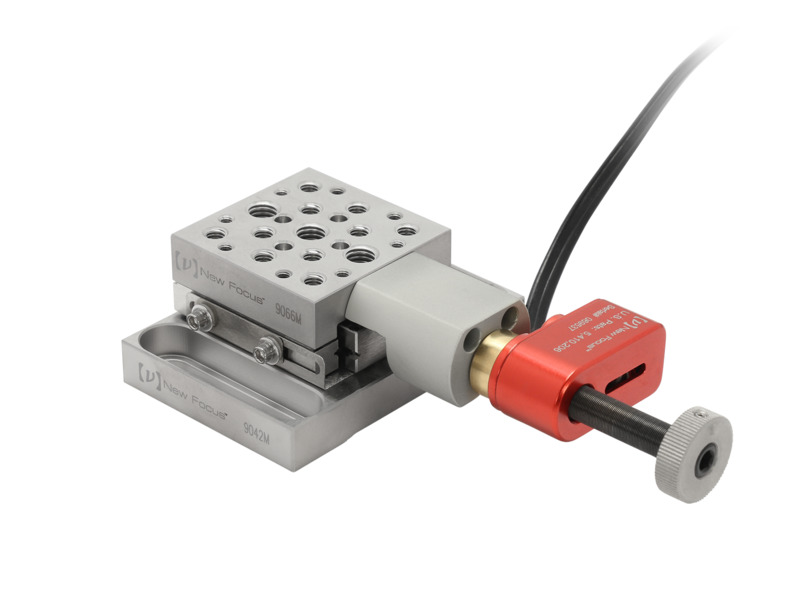

The 9066-X-P Motorized Stainless Steel Crossed-Roller Bearing Translation Stage incorporates our Picomotor™ actuator with our 0.5 inch X travel crossed-roller-bearing translation stage to meet your demanding photonics applications. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. Some assembly is required. Crossed-roller bearings provide smooth and accurate positioning for critical optical alignment applications such as fiber-alignment and high-stability positioning in laser systems. To ensure accurate linear travel, the stages use thermally matched hardened-steel, crossed-roller bearings and high-precision reference surfaces. 8-32 and 1/4-20 threaded mounting holes.
Resources & Downloads
2D Product Drawings
9066-X(106.6 kB, PDF) 9066-Xa-Drawing.pdf(126.1 kB, PDF)
Related Products
Sparepart
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9066-XManual Linear Stage, Crossed-Roller, 0.5 in., 4-40, 8-32, 1/4-20 |
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8742-4-KITPicomotor Controller Kit, Four-Axis | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More |
