XZ Linear Stage, Triple Divide, 1.1 in. Travel, 8-32 and 1/4-20 Threads
The 9064-XZ Triple Divide XZ Axis Translation Stage is built using two single-axis 1.1 inch travel stages and our 90° adapter. The micrometer clamp on the vertical stage is positioned so the weight is held by the actuator, not on the spring, creating a greater load capacity for your applications. An extra pair of holes on the platform allows you to easily convert this vertical stage to a horizontal stage when you want to reconfigure your setup. 8-32 and 1/4-20 threaded mounting holes. NOTE: Actuators are not included with these stages. We recommend using our 9302 Adjustment Screws or our SM-25 micrometers. For even more precise control, try our 8302 Picomotor™ actuator.
Resources & Downloads
Manuals
9064 Translation Stages User Manual(1.4 MB, PDF)
2D Product Drawings
9064xzb-Drawing(127.7 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 460A-XYXY Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

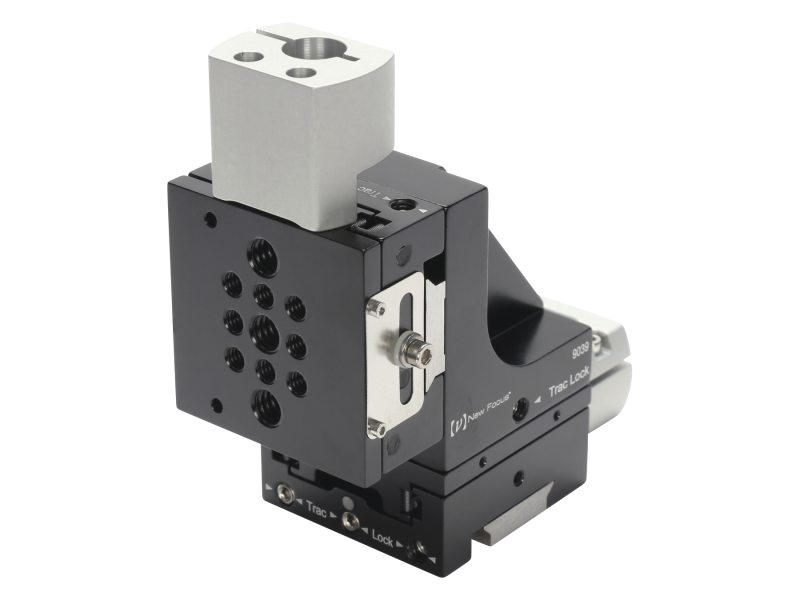

 | 9065-XZXZ Linear Stage, Triple Divide, 0.55 in. Travel, 8-32 & 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
