High-Energy Pinhole, Molybdenum, 15 µm, 900 Series

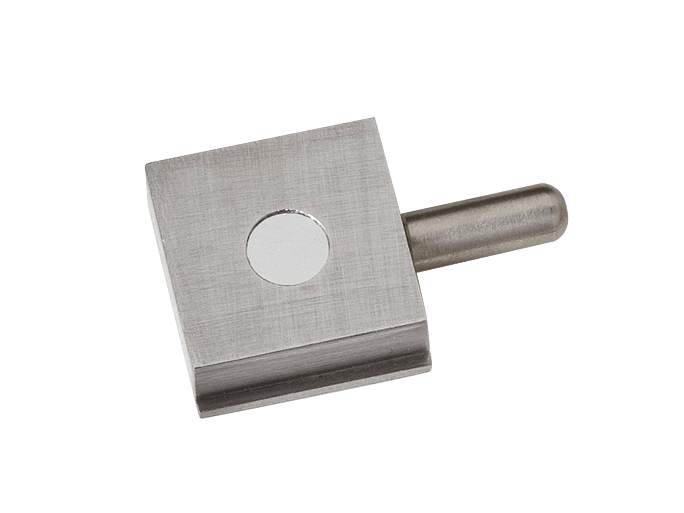

900 Series High Energy Mounted Molybdenum Pinholes

The 900PH-15 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 15 ± 1.5 μm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. This version is mounted for use with our Model 900 spatial filter.

Specifications

Technical Specs

Type
High Energy Pinhole
Aperture Diameter
15 µm
Aperture Diameter Tolerance
±1.5 µm
Material
Molybdenum
Diameter
9.525 mm
Diameter Tolerance
±0.125 mm

Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
900 Series Spatial Filters

Type
High Energy Pinhole
Aperture Diameter
15 µm
Aperture Diameter Tolerance
±1.5 µm
Material
Molybdenum
Diameter
9.525 mm
Diameter Tolerance
±0.125 mm

Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
900 Series Spatial Filters

Resources & Downloads

Other

900PH-15 RoHS Certificate(264.8 kB, PDF)
900PH-15_ROHS2-2021.pdf(280.2 kB, PDF)

2D Product Drawings

900P-MNT DWG.pdf(207 kB, PDF)
