Motorized Mirror Mount, Vacuum, 1.0 in., 6 mm Thick, Stability

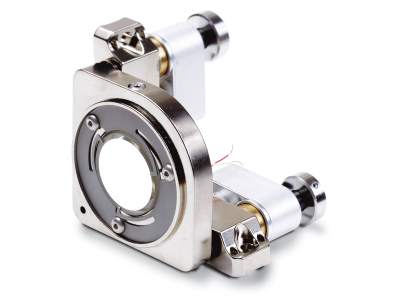

The 8817-6-V Vacuum-Compliant Nickel Plated Motorized Stability™ Mount is the vacuum-compatible version of the Model 8816-6. If offers ultraclean materials and components along with vacuum-compatible Picomotor™ actuators. It has been characterized using standard Gas Chromatography-Mass Spectrometry (GCMS). The 8817-6-V accepts 1.0 in. diameter optics up to 6 mm thick.

Specifications

Technical Specs

Type
Motorized
Optic Diameter
25.4 mm
Number of Actuators
2
Motorized Axes
2
Actuator Locks
Locked when powered down
Actuator Drive
Motorized
Angular Range
±4°
Adjustments
θx, θy
Thread Type
8-32 (M4) CLR
Cable Length
2.1 m
Connector Type
Free Leads
Clear Aperture
22.8 mm
Optic Thickness
6 mm

Optic Loading
Front
Optic Mounting
Low Wavefront Distortion
Sensitivity
0.14 arc sec
Angular Resolution
0.7 µrad
Mechanism
Kinematic
Drive Type
Picomotor
Vacuum Compatibility
High Vacuum (10-6 Torr)
Wire Type
Teflon-Coated
Material
Aluminum
Wavefront Distortion
<0.065 λ (@633 nm)
Actuator Orientation
Left-handed

Type
Motorized
Optic Diameter
25.4 mm
Number of Actuators
2
Motorized Axes
2
Actuator Locks
Locked when powered down
Actuator Drive
Motorized
Angular Range
±4°
Adjustments
θx, θy
Thread Type
8-32 (M4) CLR
Cable Length
2.1 m
Connector Type
Free Leads
Clear Aperture
22.8 mm
Optic Thickness
6 mm

Optic Loading
Front
Optic Mounting
Low Wavefront Distortion
Sensitivity
0.14 arc sec
Angular Resolution
0.7 µrad
Mechanism
Kinematic
Drive Type
Picomotor
Vacuum Compatibility
High Vacuum (10-6 Torr)
Wire Type
Teflon-Coated
Material
Aluminum
Wavefront Distortion
<0.065 λ (@633 nm)
Actuator Orientation
Left-handed
