Motorized Mirror Mount, Stability, 1.0 in. Diameter, 6 mm Thick

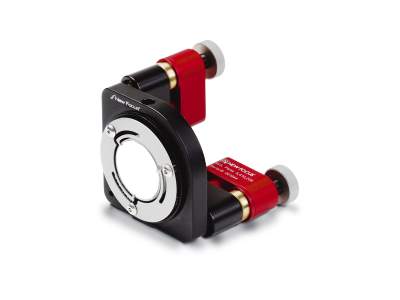

The 8816-6 Motorized Stability™ Mount combines the stability of our Stability™ mounts with the precision and stiffness of our Picomotor™ actuators to provide the ultimate in precision motorized optical alignment for 1.0 in (25.4 mm) diameter optics. The unique optic-retention system minimizes wavefront distortion as well as maximizes overall mechanical stability. Mirror installation and removal is simple and fast, requiring no adhesives. The Model 8816-6 accepts up to 6 mm thick optics.

Specifications

Technical Specs

Type
Motorized
Optic Diameter
25.4 mm
Number of Actuators
2
Motorized Axes
2
Actuator Locks
Locked when powered down
Actuator Drive
Motorized
Angular Range
±4°
Adjustments
θx, θy
Thread Type
8-32 (M4) CLR
Cable Length
2.1 m
Connector Type
4-pin RJ-22
Clear Aperture
22.8 mm

Optic Thickness
6 mm
Optic Loading
Front
Optic Mounting
Low Wavefront Distortion
Sensitivity
0.14 arc sec
Angular Resolution
0.7 µrad
Mechanism
Kinematic
Drive Type
Picomotor
Material
Aluminum
Wavefront Distortion
<0.065 λ (@633 nm)
Actuator Orientation
Left-handed

Type
Motorized
Optic Diameter
25.4 mm
Number of Actuators
2
Motorized Axes
2
Actuator Locks
Locked when powered down
Actuator Drive
Motorized
Angular Range
±4°
Adjustments
θx, θy
Thread Type
8-32 (M4) CLR
Cable Length
2.1 m
Connector Type
4-pin RJ-22
Clear Aperture
22.8 mm

Optic Thickness
6 mm
Optic Loading
Front
Optic Mounting
Low Wavefront Distortion
Sensitivity
0.14 arc sec
Angular Resolution
0.7 µrad
Mechanism
Kinematic
Drive Type
Picomotor
Material
Aluminum
Wavefront Distortion
<0.065 λ (@633 nm)
Actuator Orientation
Left-handed

Resources & Downloads

2D Product Drawings

8816-X-RC(486 kB, PDF)

Technical Notes

Open vs Closed Loop Picomotors(1.6 MB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)
