Picomotor Controller Kit, Inc. (2) 8821-L Picomotor Mounts
Picomotor Controller Kit, Inc. (2) 8821-L Picomotor Mounts
Model: 8742-4-8821-LL
Product Series Overview

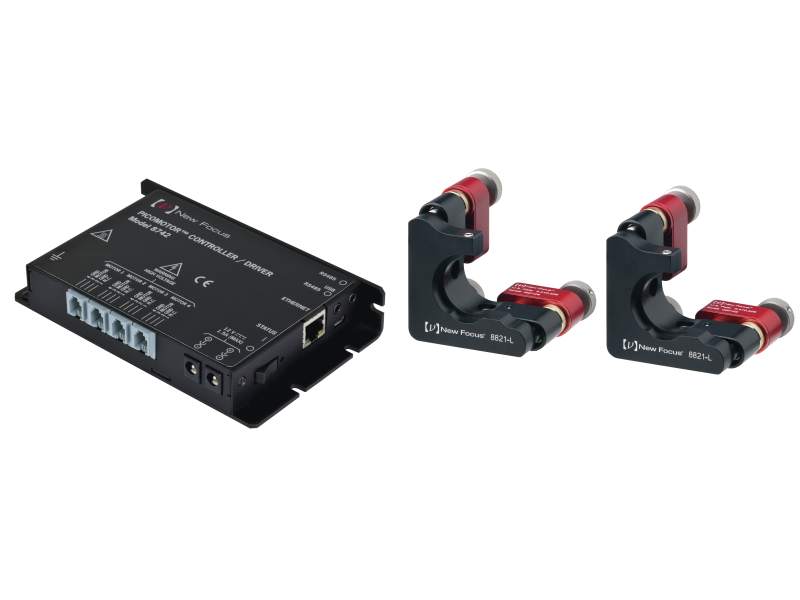

Picomotor Mount with Controller KitsWe've bundled our Picomotor controller/driver and our ClearEdge Picomotor mirror mounts together to provide a simple kit to get you started quickly. Just mount the ClearEdge, plug it into the driver and you're ready to go. The kit includes the following components: 1x Model 8742 module and software, 1x Model 8745-PS power supply, 1x Model 8745_USB-CBL USB cable and 2x Model 8821-L ClearEdge Picomotor mounts.
Includes Model 8821 Mirror Mounts

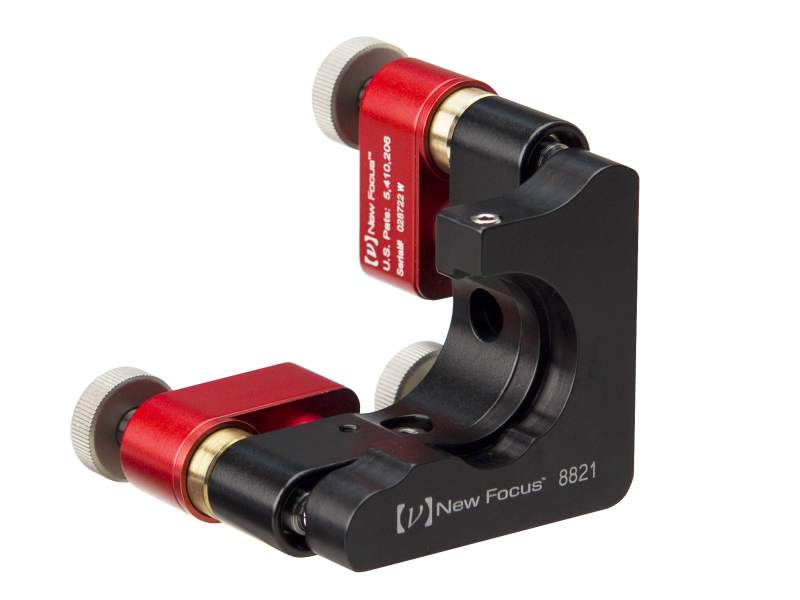

The 8821 offers true set and forget stability, remote adjustment down to sub-µrad, all in a very compact size that fits very well into tight spaces, including laser cavities.
Complete Control Solution
Each kit includes a Model 8742 Picomotor controller and driver, a Model 8745-PS power supply, a USB cable and two 8821 clear edge mirror mounts for a complete control solution.
Specifications
- TypeMount and Controller Kit
- Number of Axis4
- Computer Interfaces10/100 Ethernet, USB
- Angular Range±3°
- Power Requirements10.5 to 14.5 VDC
- Power Consumption11 W @ 2 kHz Sustained Speed, 2 W Idle
- Maximum Pulse Rate2 kHz
- Operating Temperature0 to 65°C
- Storage Temperature-40 to 95°C
