  6. 8703

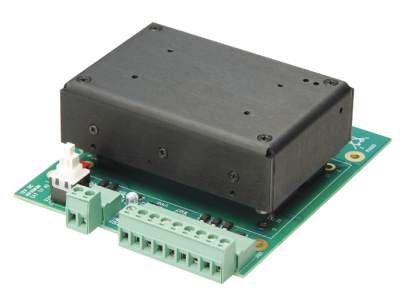

Picomotor Driver Module, Single-Axis, TTL/Analog

  • Type
    Motion Controller
  • Number of Axis
    1
  • Drive Type
    Open Loop Picomotor
  • Interface
    Input: 9-Pin Phoenix MSTBA
    Output: RJ-11 Phoenix 3-Position Terminal Block
  • Power Requirements
    10 to 12 VDC
  • Power Consumption
    7.5 W @ 1 kHz Sustained Speed
  • Maximum Pulse Rate
    2 kHz
  • Operating Temperature
    0 to 65°C
  • Storage Temperature
    -40 to 95°C
  • Weight
    0.163 kg
