Piezo Actuator, Tiny Picomotor, 12.7 mm Travel, 0.25 in. Shank

Tiny Picomotor Piezo Actuators

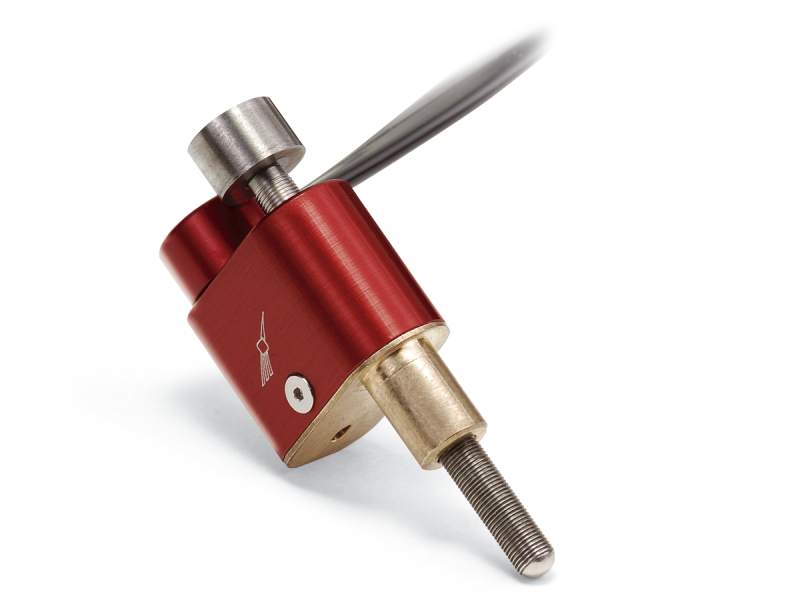

The 8353 Tiny Picomotor actuator is a smaller sized version of our standard Picomotor actuators. We have improved the design so that it will meet even more of your compact-area needs. This version has a 0.25 inch shank mount

Specifications

Technical Specs

Travel Range
12.7 mm
Minimum Incremental Motion
<30 nm
Maximum Speed
1.0 mm/min
Axial Load Capacity
13 N
Mounting
6.35 mm Shank
Frequency
1.75 kHz
Drive Torque
0.014 Nm

Rated Life
>1.5x10⁸ steps
Cable Length
2.1 m
Connector Type
4-Pin RJ-22
Operating Temperature
10-40 C

Travel Range
12.7 mm
Minimum Incremental Motion
<30 nm
Maximum Speed
1.0 mm/min
Axial Load Capacity
13 N
Mounting
6.35 mm Shank
Frequency
1.75 kHz
Drive Torque
0.014 Nm

Rated Life
>1.5x10⁸ steps
Cable Length
2.1 m
Connector Type
4-Pin RJ-22
Operating Temperature
10-40 C

Resources & Downloads

3D Product Models

Download CAD Files

Tutorials

How the Picomotor Actuator Works

Literature

Nanopositioning Solutions(9.3 MB, PDF)
Picomotor FAQ(3.1 MB, PDF)

Technical Notes

Open vs Closed Loop Picomotors(1.6 MB, PDF)

Application Notes

Piezo Actuators Provide Flexibility to Laser Designers Using Compact Optical Mounts and Motion Stages(984.9 kB, PDF)

Certificates

MKS RoHS2-2021 Certificate for 83xx Picomotors.pdf(260.4 kB, PDF)
EU27 Declaration of Conformity 8301.pdf(142.8 kB, PDF)

2D Product Drawings

8353 dwg(614.5 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

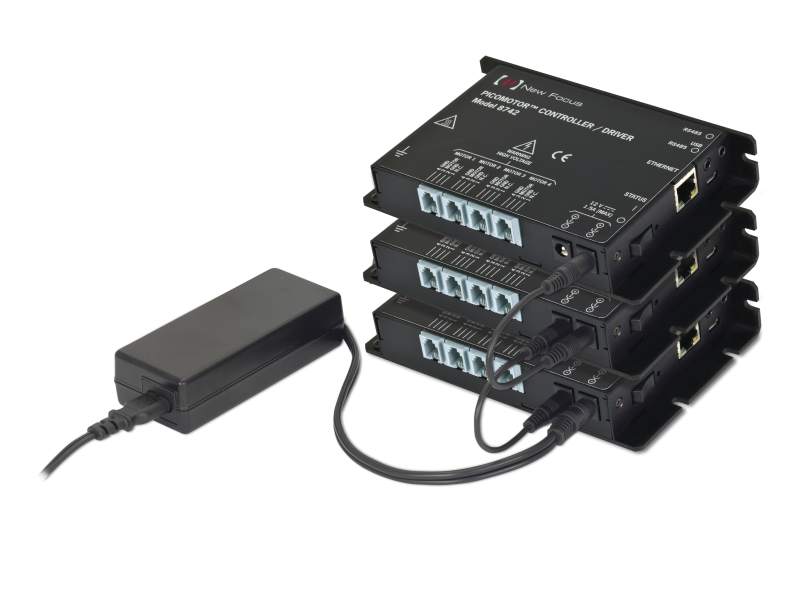

		8742-12-KITPicomotor Controller Kit, Twelve-Axis	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$4,199
