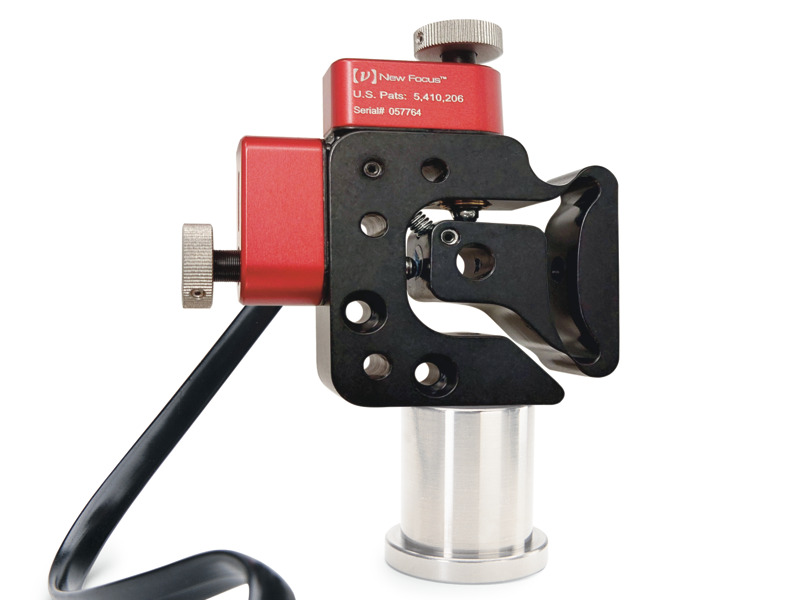

Motorized XY Fiber Positioner, M4 Tapped Hole
The 8051-M Motorized XY Fiber Positioner improves the resolution of our manual fiber positioner from 1.0 μm to finer than 0.1 μm. Combining one of these stages with our Model 9092 coupler body and clamp gives you a good motorized multimode-fiber positioner. M4 tapped hole.
Specifications
- Axes of TravelX, Y
- Travel Range+/- 1.5 mm
- Thread TypeM4
- Connector Type6 Pin
- Maximum Speed1 mm/min
- Minimum Incremental Motion30 nm
- Operating Temperature10-40 ˚C
Resources & Downloads
2D Product Drawings
8051c-Drawing(108.9 kB, PDF)
Literature
Picomotor FAQ(3.1 MB, PDF)
