XY Fiber Launcher, Flexure Design, Bare, M4

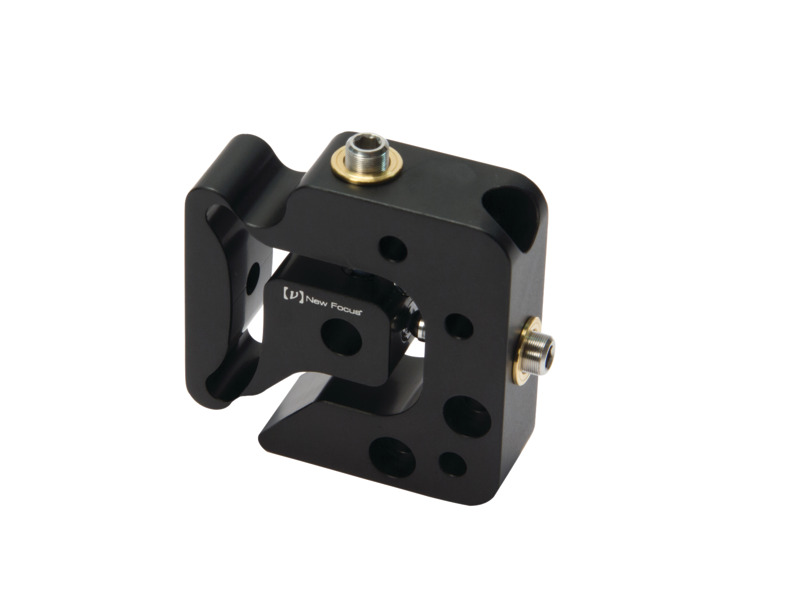

The 9051-M XY Fiber Launcher's unique flexure design means you won't have to worry about hysteresis. Perfect for coupling light into or out of multimode fibers, it can be mounted on a flat surface or onto a post or pedestal riser. A nylon-tipped locking setscrew holds the fiber chuck in place. You can also use the Model 9051 with the Model 9092 coupler body to hold microscope objectives on the positioner. M4 mounting thread.

Specifications

Technical Specs

Axes of Travel
X, Y
Fiber Type
Multimode
Travel Range
3 mm
Optical Axis Height
25.4 mm

Sensitivity
X,Y: 0.88 µm
Thread Type
M4

Axes of Travel
X, Y
Fiber Type
Multimode
Travel Range
3 mm
Optical Axis Height
25.4 mm

Sensitivity
X,Y: 0.88 µm
Thread Type
M4

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9051e-Drawing(98.7 kB, PDF)
