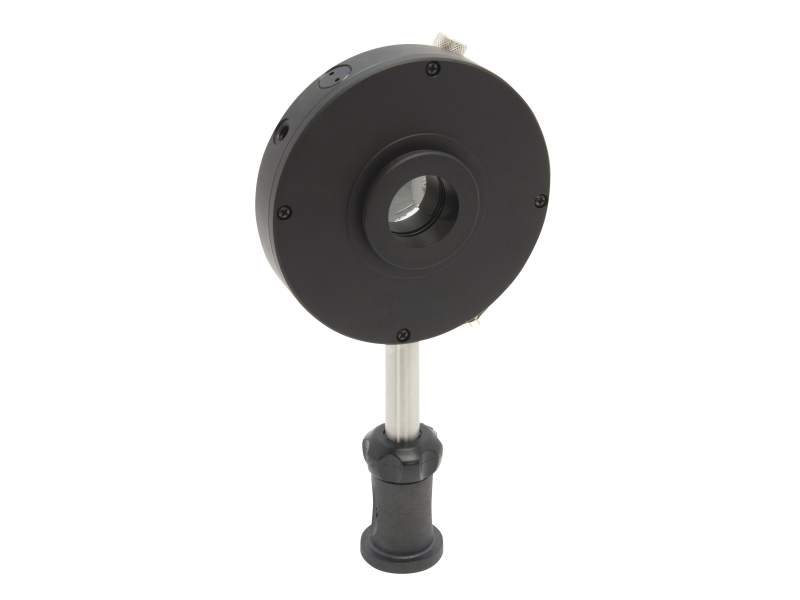

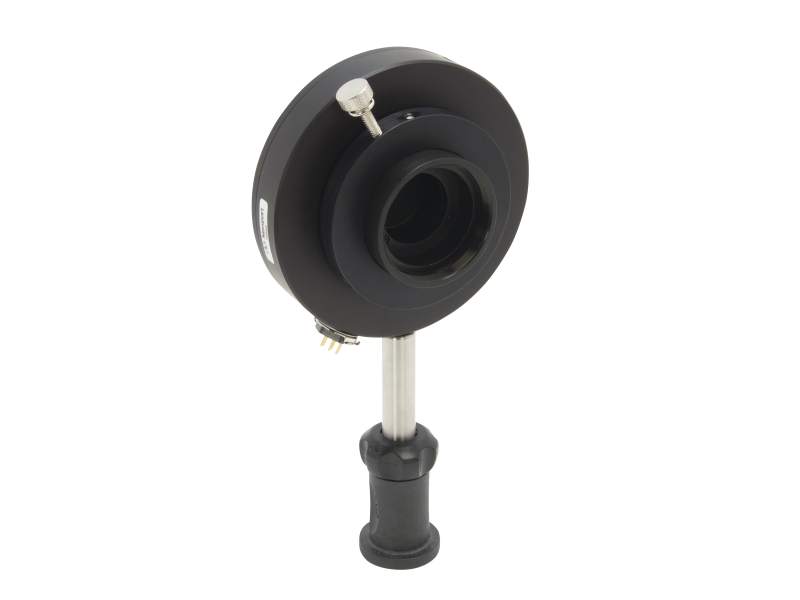

Electronic Shutter, 14 mm Aperture, 40 Hz Exposure Frequency

The 76993 is useful for detector protection and gating at frequencies of up to 40 Hz in burst mode. Burst frequency rating is specified for four seconds maximum with one minute minimum between bursts. In continuous mode (defined as the shutter minimum exposure pulse), the shutter operates at 10 Hz. This shutter features a 14 mm aperture.

Specifications

Technical Specs

Type
Electronic Shutter
Flange Series Size
1.5 Inch
Aperture Diameter
14 mm
Maximum Frequency
40 Hz (burst mode)
10 Hz (continuous)
Delay Time
2.60 ms
Rise Time
1.95 ms
Fall Time
3.90 ms

Minimum Pulse Width
8.45 ms
Damage Threshold
5 W/mm²
Operating Temperature
0 - 80°C
Mounting Holes
1/4-20
Weight
0.4 kg

Type
Electronic Shutter
Flange Series Size
1.5 Inch
Aperture Diameter
14 mm
Maximum Frequency
40 Hz (burst mode)
10 Hz (continuous)
Delay Time
2.60 ms
Rise Time
1.95 ms
Fall Time
3.90 ms

Minimum Pulse Width
8.45 ms
Damage Threshold
5 W/mm²
Operating Temperature
0 - 80°C
Mounting Holes
1/4-20
Weight
0.4 kg
