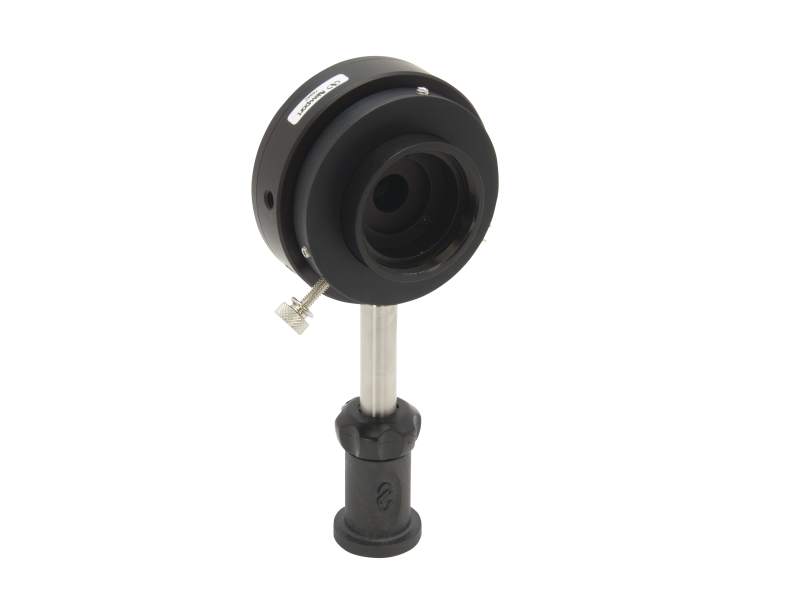

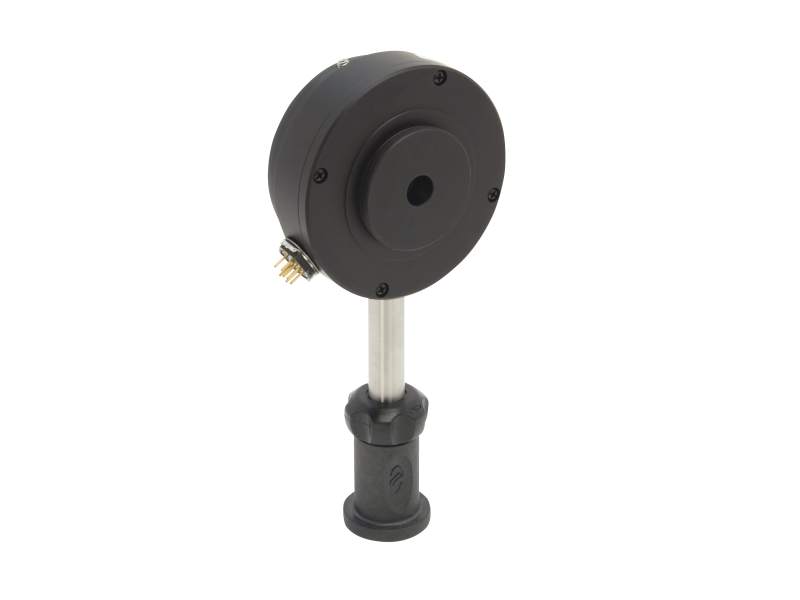

Electronic Shutter, 6 mm Aperture, 150 Hz Exposure Frequency

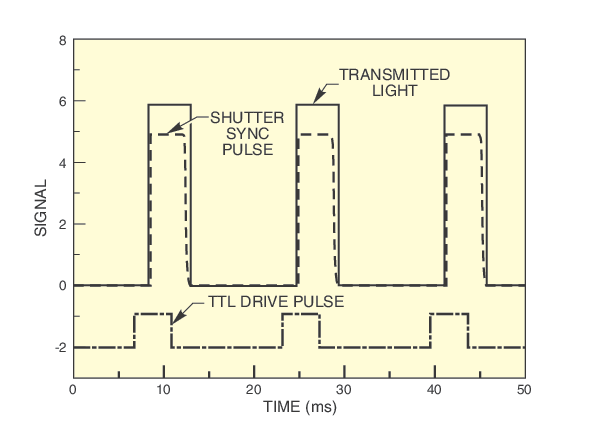

The 76992 is especially suited to laser or focal plane use and applications including beam modulation at frequencies up to 150 Hz in burst mode. Burst frequency rating is specified for four seconds maximum with one minute minimum between bursts. In continuous mode (defined as the shutter minimum exposure pulse), the shutter operates at 20 Hz. For continuous cycling, the open time should not exceed 25% of the cycle time. This shutter features a 6 mm aperture.

Specifications

Technical Specs

Type
Electronic Shutter
Flange Series Size
1.5 Inch
Aperture Diameter
6 mm
Maximum Frequency
150 Hz (burst mode)
20 Hz (continuous)

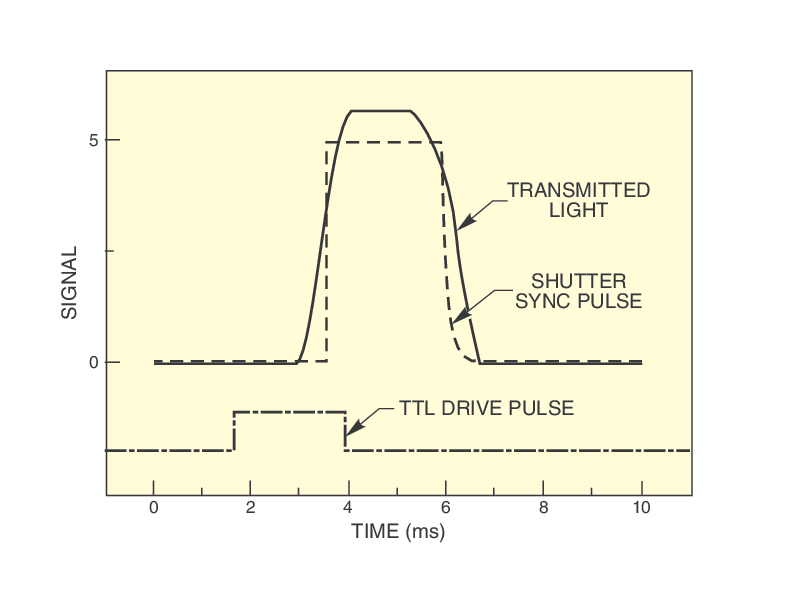

Delay Time
1.10 ms
Rise Time
0.77 ms
Fall Time
0.88 ms
Minimum Pulse Width
2.53 ms

Damage Threshold
2.5 W/mm²
Duty Cycle
25% max for continuous cycling
Operating Temperature
0 - 80°C
Mounting Holes
1/4-20
Weight
0.4 kg

Type
Electronic Shutter
Flange Series Size
1.5 Inch
Aperture Diameter
6 mm
Maximum Frequency
150 Hz (burst mode)
20 Hz (continuous)
Delay Time
1.10 ms
Rise Time
0.77 ms
Fall Time
0.88 ms
Minimum Pulse Width
2.53 ms

Damage Threshold
2.5 W/mm²
Duty Cycle
25% max for continuous cycling
Operating Temperature
0 - 80°C
Mounting Holes
1/4-20
Weight
0.4 kg
