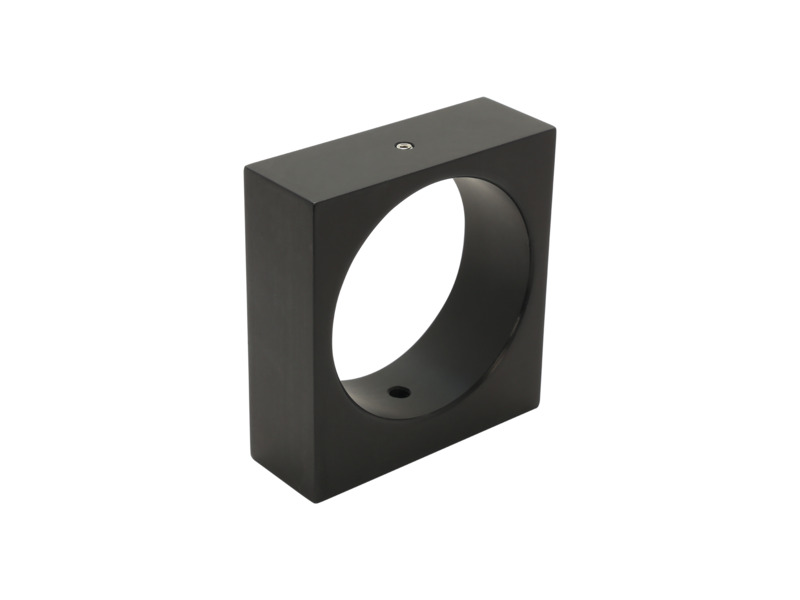

Beam Probe Mount, 2 Inch Series, No Flange
Beam Probe Mount, 2 Inch Series, No Flange
Model: 76616
5 Weeks
Product Series Overview
Beam Probes MountsThe 76616 Beam Probe Mount is an easy to use post-mountable holder. Simply slide the beam probe into the holder, adjust for optimal position, and secure it with the set screw. There is a 1/4-20 thread on the bottom to connect an optical post and holder of your choosing, providing the flexibility to meet the exact height of the measurement setup. It holds 2.0 Inch Series (diameter) beam probes for free space coupling.
