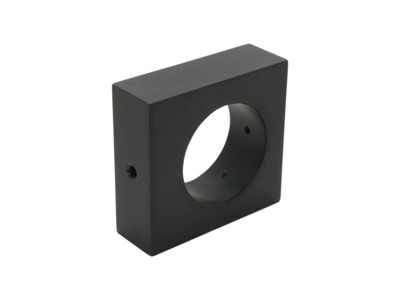

Beam Probe Mount, 1.5 Inch Series, No Flange
Beam Probe Mount, 1.5 Inch Series, No Flange
Model: 76615
In Stock
Product Series Overview
Beam Probes MountsThe 76615 Beam Probe Mount is an easy to use post-mountable holder. Simply slide the beam probe into the holder, adjust for optimal position, and secure it with the set screw. There is a 1/4-20 thread on the bottom to connect an optical post and holder of your choosing, providing the flexibility to meet the exact height of the measurement setup. It holds 1.5 Inch Series (diameter) beam probes for free space coupling.
Resources & Downloads
Literature
Light Sources(1.6 MB, PDF)
Related Products
Compatible Beam Probes
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 76595Collimating Beam Probe, Fiber Bundle, 25-150 mm, 1.5 Inch Flange | 4 Weeks | ||||
| 76596Collimating Beam Probe, Fiber Bundle, 70-350 mm, 1.5 Inch Flange | |||||
| 76600Collimating Beam Probe, Liquid Light Guide 25-40 mm, 1.5 Inch Flange | 3 Weeks | ||||
| 76605Collimating Beam Probe, Liquid Light Guide, 40-50 mm, 1.5 Inch Flange | 3 Weeks |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 76616Beam Probe Mount, 2 Inch Series, No Flange | 5 Weeks |
