70710 Current to Voltage Preamplifier

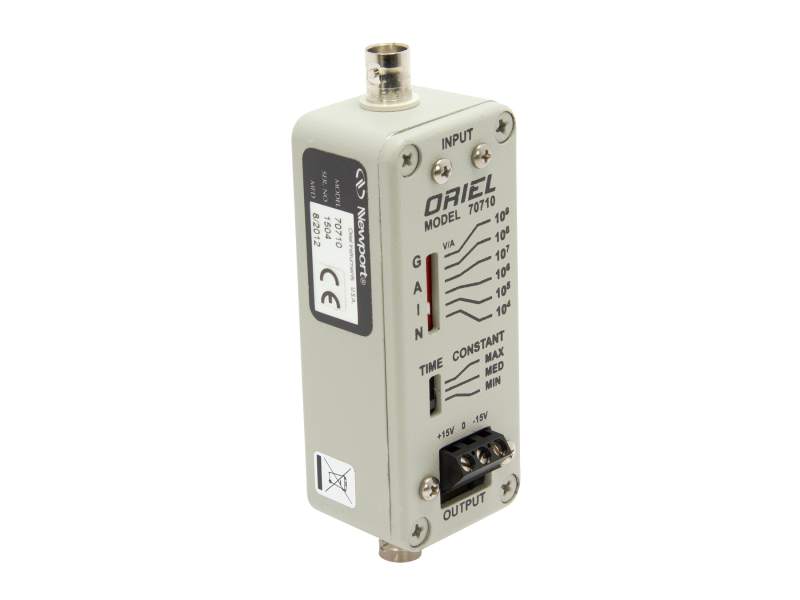

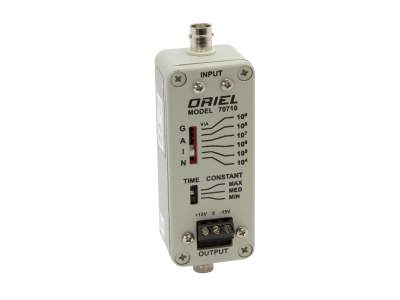

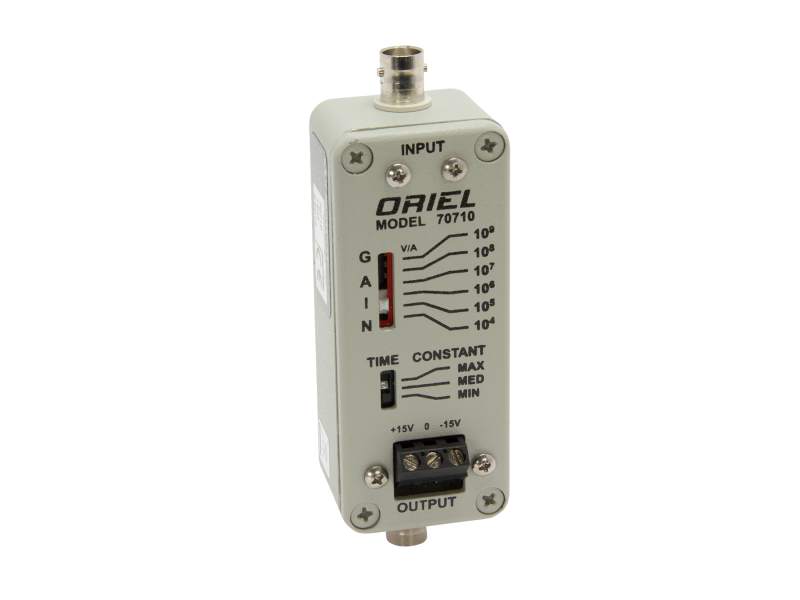

The 70710 Current Preamplifier is a low noise current to voltage amplifier designed for photomultiplier tubes or photodiodes operating in photovoltaic mode, such as unamplified detector models 71650 and 71653.

For power, use the provided power cable to connect to an external power supply for the necessary +/- 15 VDC. This can be accomplised with the Oriel Laboratory Power Supply models 70703 or 70709.

For voltage signal, use BNC cable model 70018 to interface from the output of this pre-amplifier to a Newport Power Meter or LIDA-SRS-KIT.

Specifications

Technical Specs

Type

Current to Voltage Preamplifier
Maximum Output

±10 V
Input Connector

BNC
Accuracy

± 1 %
Linearity

± 1 %
Bandwidth

DC to 100 kHz
Gain

10⁴, 10⁵, 10⁶, 10⁷, 10⁸, 10⁹V/A

Weight

0.1 kg
Maximum Input Impedance

8000 at 10⁹ V/A
Power Requirements

± 13 to ±18 V, 10 mA
NEP

4 pA/Hz^1/2(at 1 kHz, 10⁴ V/A)
Noise

<2.3 x 10^-12A Hz^-1/2

Type

Current to Voltage Preamplifier
Maximum Output

±10 V
Input Connector

BNC
Accuracy

± 1 %
Linearity

± 1 %
Bandwidth

DC to 100 kHz
Gain

10⁴, 10⁵, 10⁶, 10⁷, 10⁸, 10⁹V/A

Weight

0.1 kg
Maximum Input Impedance

8000 at 10⁹ V/A
Power Requirements

± 13 to ±18 V, 10 mA
NEP

4 pA/Hz^1/2(at 1 kHz, 10⁴ V/A)
Noise

<2.3 x 10^-12A Hz^-1/2

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPT-pg6-90b (552.9 kB, PDF)

Other

RoHS Certificate of Conformity- 70710 PreAmplifier (1.2 MB, PDF)
