5721-B-H Aspheric Objective Lens

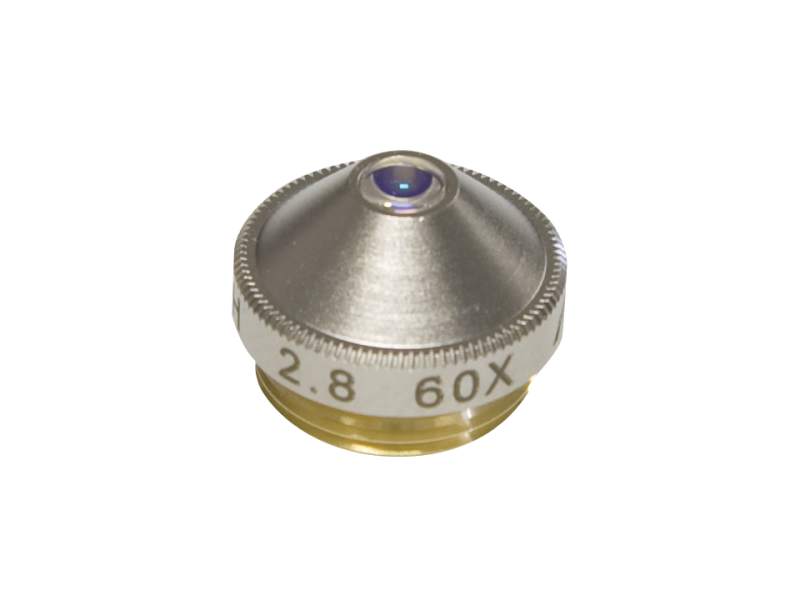

The 5721-B-H Aspheric Objective Lens is made with D-ZLaF52La. It is 4.0 mm diameter with 60x magnification and a focal length of 2.8 mm. This aspheric lens has a housing length of 11.8 mm with 3.6 mm clear aperture and a working distance of 1.6 mm. It is AR coated for the wavelength range of 600 to 1050 nm. This compact glass plano-convex aspheric lens is a convenient, high-quality alternative to microscope objectives. It is especially handy for low f-number applications like coupling light into and out of optical fibers or collimating diode lasers since the aspheric surface minimizes the aberrations. A model 5709 RMS threaded adapter is required for use as a microscope objective. A model 5708 optical mount adapter allows these objectives to be mounted in a 1 inch diameter optical mount.

Specifications

Technical Specs

Lens Type

Aspheric Objective
Objective Type

Plano-Convex Aspheric
Lens Shape

Plano-Convex Aspheric
Magnification

60x
Numerical Aperture

0.6
Diameter

4.0 mm
Antireflection Coating

600-1050 nm
Wavelength Range

600-1050 nm
Effective Focal Length (EFL)

2.80 mm

Coating Code

-B
Lens Material

D-ZLaF52La
Center Thickness (T_c)

2.24 mm
Working Distance

1.5 mm
Wavefront Error

0.150 λ
Design Wavelength

830 nm
Holder Length

11.8 mm
Clear Aperture

3.6 mm

Lens Type

Aspheric Objective
Objective Type

Plano-Convex Aspheric
Lens Shape

Plano-Convex Aspheric
Magnification

60x
Numerical Aperture

0.6
Diameter

4.0 mm
Antireflection Coating

600-1050 nm
Wavelength Range

600-1050 nm
Effective Focal Length (EFL)

2.80 mm

Coating Code

-B
Lens Material

D-ZLaF52La
Center Thickness (T_c)

2.24 mm
Working Distance

1.5 mm
Wavefront Error

0.150 λ
Design Wavelength

830 nm
Holder Length

11.8 mm
Clear Aperture

3.6 mm
